Touch Keypad Networked Controller

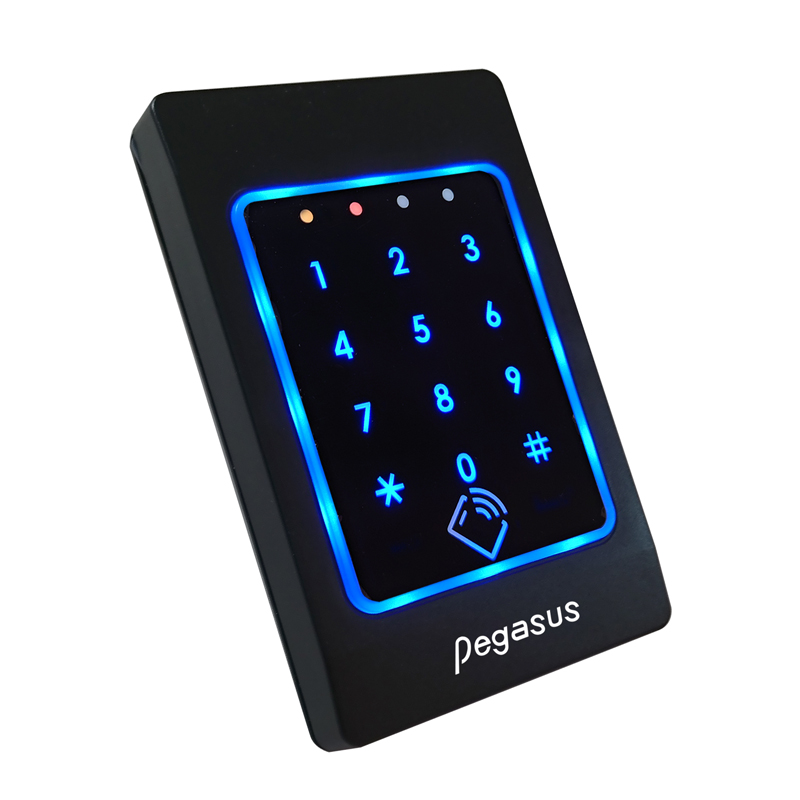

PP-33 Touch Keypad RFID Access Controller — Built with high-quality Japanese relays to ensure stable and shock-resistant smart security.

PP-33 combines a keypad with RFID access, supporting single-door or bidirectional access. It offers multiple authentication methods and expansion capabilities, making it ideal for corporate access, mailbox security, and elevator floor control.

PP-33 Application Scenarios
●    Access Control Systems: Office, factory, residential complex personnel access.
●    Elevator Floor Control: Authorized access via relay modules.
●    Locker / Mailbox Security: Restrict access to authorized users.
●    Security & Intrusion Systems: Includes alert and alarm linkage features.

Technical Specifications and Advantages
●    Flexible Access Modes: Card, PIN, card + PIN, card number only, or personal PIN.
●    Advanced Security: Triggers alarm after 3 consecutive incorrect PIN entries.
●    Shock-Resistant Relay: Japanese-made relay prevents unauthorized door activation.
●    Flexible PIN Settings: Supports 90 sets of 4-digit PINs and 10-digit card numbers.
●    Adjustable Delay & Monitor Time: Set door open delay and monitor time up to 97 and 98 minutes.
●    Output Modes: Supports ON/OFF mode for security system integration.
●    Free Access Mode & Time Zone Controls: Offers various timed operations.
●    Elevator Integration: Compatible with multi-relay modules (8F/24F/48F/64F/96F).
●    Bidirectional Entry: Enables entry/exit with external reader.

How to Choose a Touch Keypad Access Controller?
All controllers in PONGEE’s networked access control series include the following advanced functions:
●    Multiple verification modes (card, PIN, dual authentication)
●    Integration with fire alarms, security, or elevator systems
●    Multi-zone and delay configurations for precise control

PP-33 stands out with two unique features:
●    Touch-Backlit Keypad: Enhanced visibility in low-light environments, smooth panel design increases durability and water resistance.

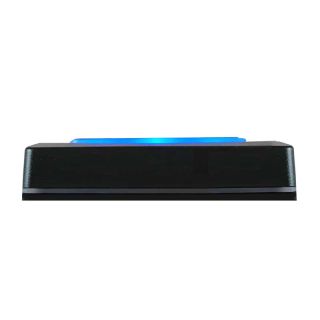

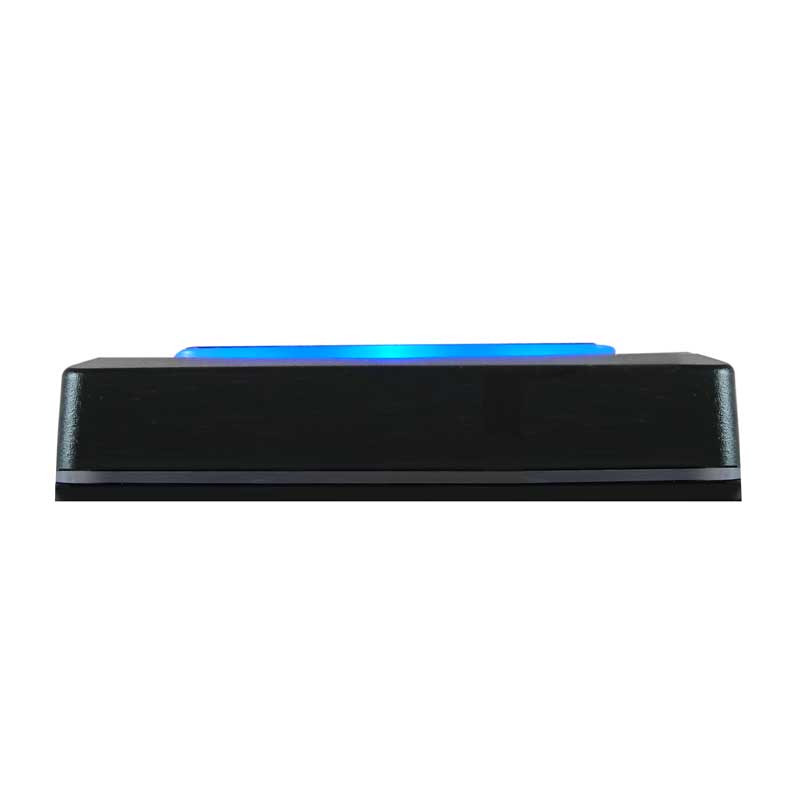

●    Ultra-Slim Design: Ideal for space-constrained walls or narrow installation zones.

Frequently Asked Questions (FAQ)
●    Is PP-33 suitable for outdoor use?
Yes, its IP54 rating ensures reliable use in splash-proof and standard dusty environments.

●    Can it integrate with elevator systems?
Yes, it supports floor control when paired with multi-relay modules.

●    Does it support anti-theft functions?
Yes, it includes a security setting card and incorrect password alarm that can link to alarm systems.

●    How long can the delay or monitoring time be set?
Delay and monitoring times can be set up to 97 and 98 minutes, or used in continuous output mode.

System configuration

Application field

Accessories

Model No.	R-21-310-3B
Feature	Avoid intervention
Dimension	119.6(L) x 76.6(W) x 15(H)mm
Material	ABS

Ordering information

PP-33XNB	125KHz ASK EM Touch Keypad Networked Controller
PP-33XM0B	13.56MHz Mifare Touch Keypad Networked Controller
PP-33XFB	13.56MHz FeliCa Touch Keypad Networked Controller

Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.

Pricing and Purchasing Information
PP-33 is suitable for a wide range of access control applications, offering versatile functions and high stability. It also supports system integration and OEM/ODM customization. For pricing or planning assistance, feel free to contact PONGEE.

If you're interested in the detailed specifications, pricing, or purchasing information of PP-33, please contact Pegasus:
●    Phone: +886-2-8228-0198
●    Email: pongee@pegasus.com.tw
●    Address: 5F., No.738, Chung-Cheng Rd., Chung-Ho District, New Taipei City 235603, Taiwan

PONGEE is a professional access control system manufacturer, offering various RFID and touch-based controllers. We support smart building integration, community access control, elevator floor management, and more. Contact us for access system recommendations and installation services.
