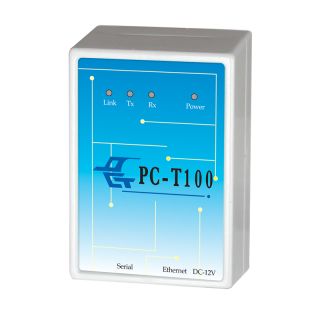

TCP/IP Ethernet Converter

TCP/IP Ethernet Converter
Convert RS-232C/RS-485 serial interface to Ethernet interface

Compare Inquiry (0)

Certification

Product
Specification
Download

Product

System configuration

Specification

Transmission speed

300 bps~921,600 bps

Protocol

TCP,UDP,IP,ARP,ICMP,IGMP, Ethernet MAC

Network interface

10/100 Mbps Base-T Ethernet (auto-detecting)

Power

12V DC,150mA

Signals

TxD,RxD,R TS ,C TS ,DTR,DSR,GND / DataA, DataB

Dimensions(LxWxD)mm

115x78x31

Download

Serial Interface Converter Catalog

Download

※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.

RELATED PRODUCTS

Model：PCT-WR5

Wiegand to RS485 Converter

*The converter is designed for remote control where need Wiegand input but far from the control center to terminal. It a good two way transmit (bi-direction) communication device for access control system.
*Wiegand WG26, 34 automatically identification. (For other Wiegand or 485 protocols, please provide information for customization)
*The conversion process should be manual setting by Switch. (Default is Wiegand to RS-485)
*With Bi-Color status LED.
*This Wiegand signal extender needs 2pcs to work together.

Compare

Inquire

Model：PCT-WR2

Wiegand to RS232 Converter

*The converter is designed for remote control where need Wiegand input but far from the control center to terminal. It a good two way transmit (bi-direction) communication device for access control system.
*Wiegand WG26, 34 automatically identification. (For other Wiegand or 232 protocols, please provide information for customization)
*The conversion process should be manual setting by Switch. (Default is Wiegand to RS-232)
*With Bi-Color status LED.
*This Wiegand signal extender needs 2pcs to work together.

Compare

Inquire
