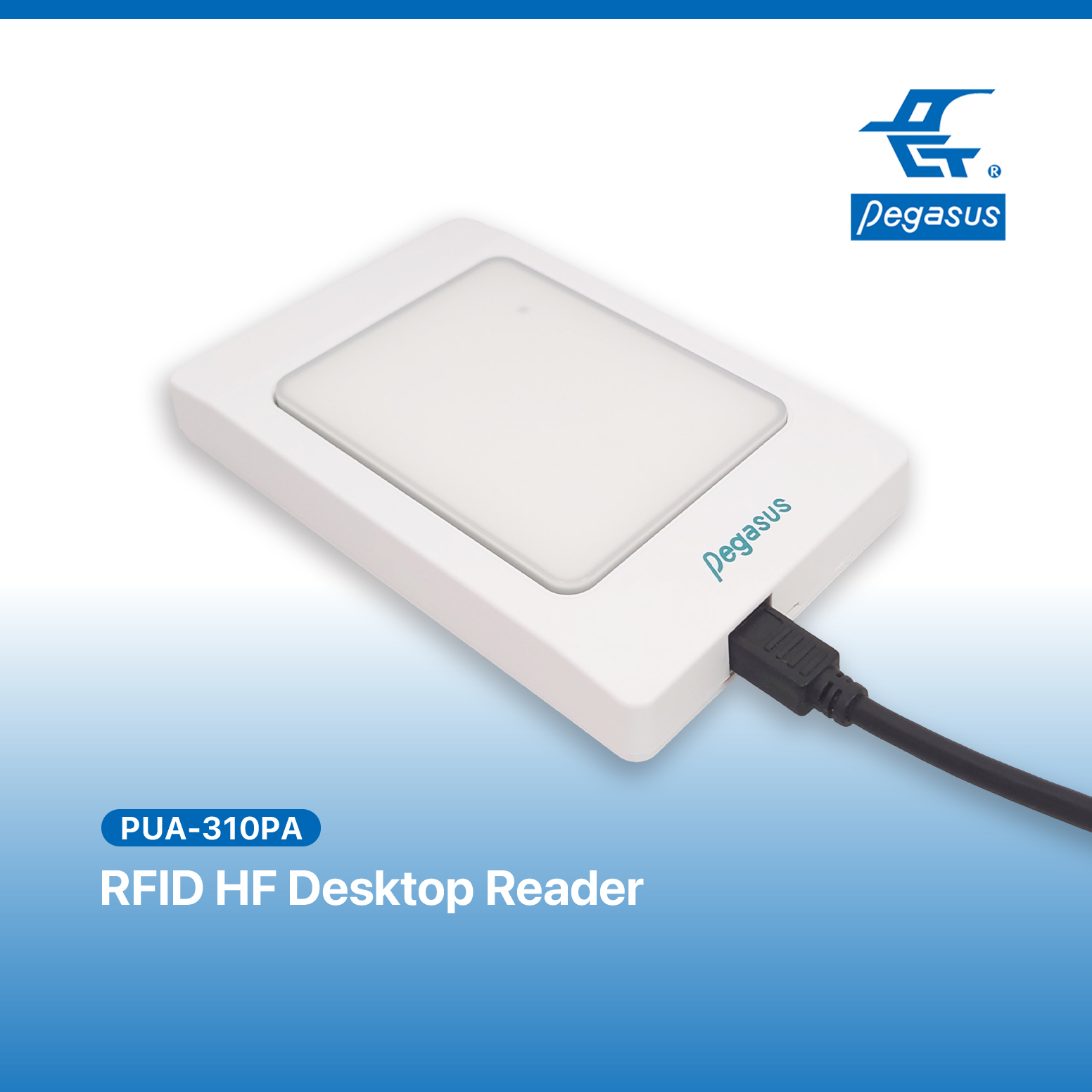

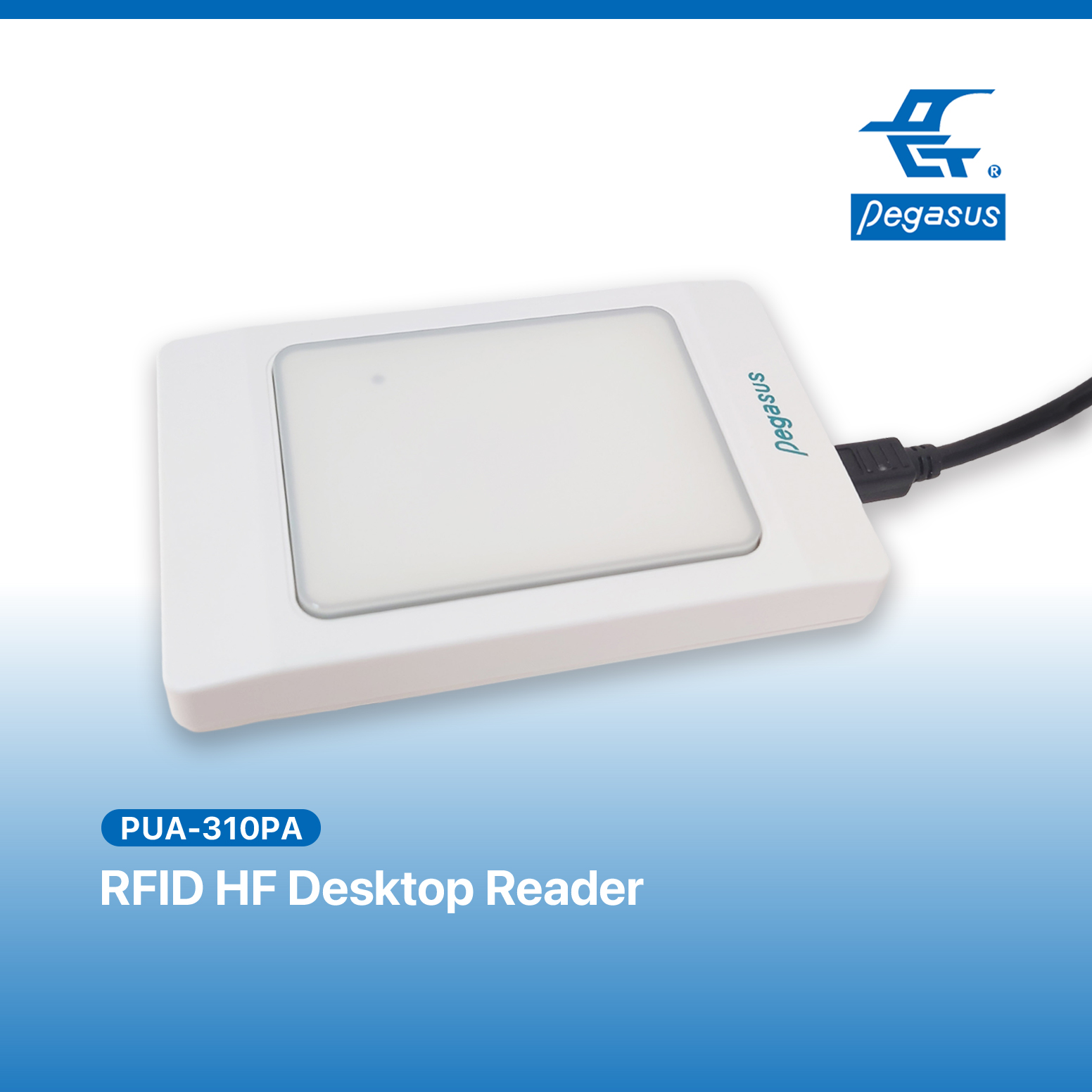

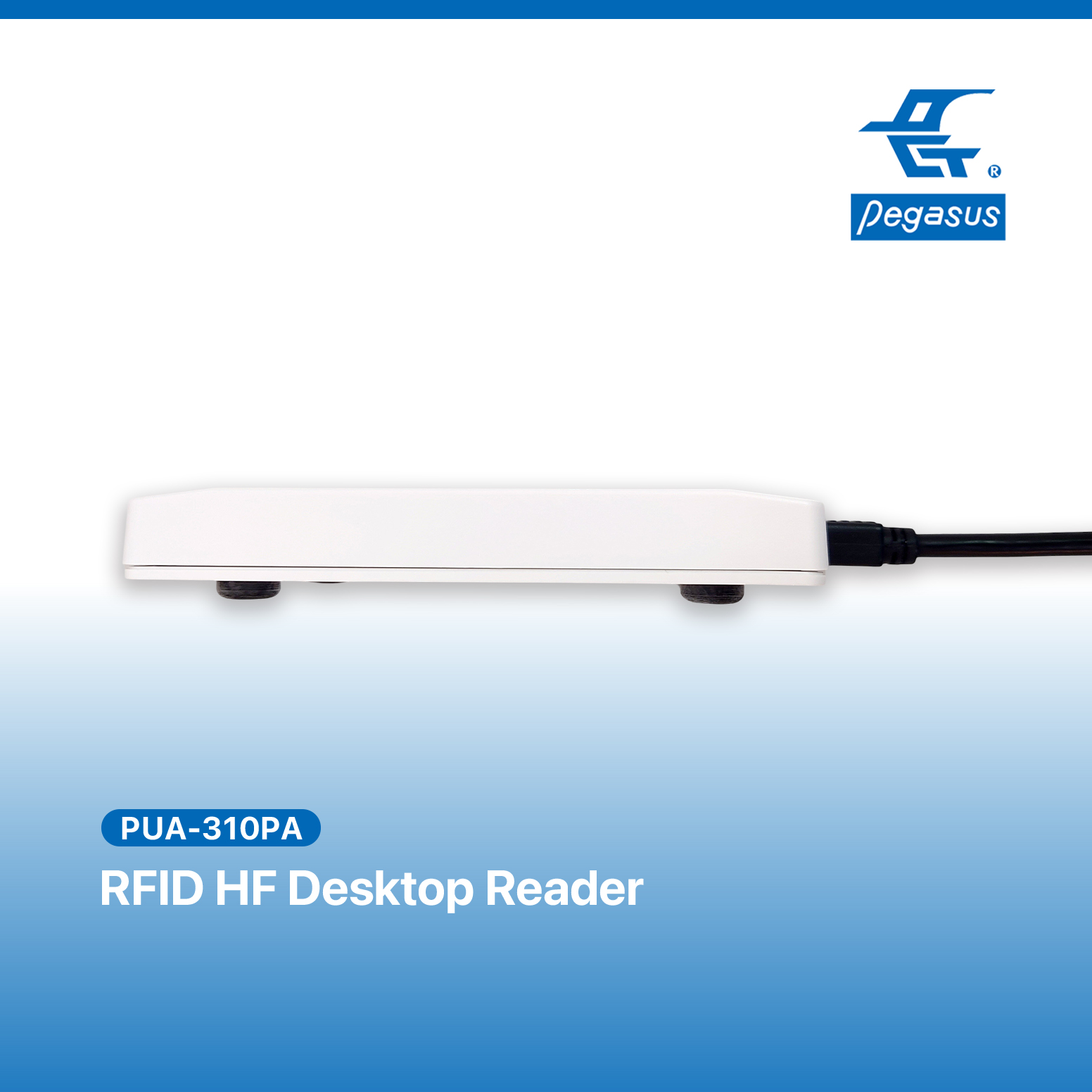

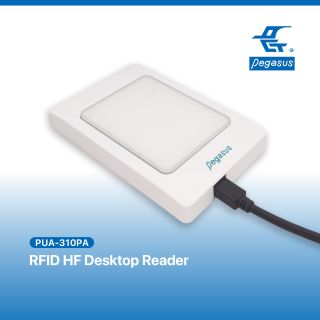

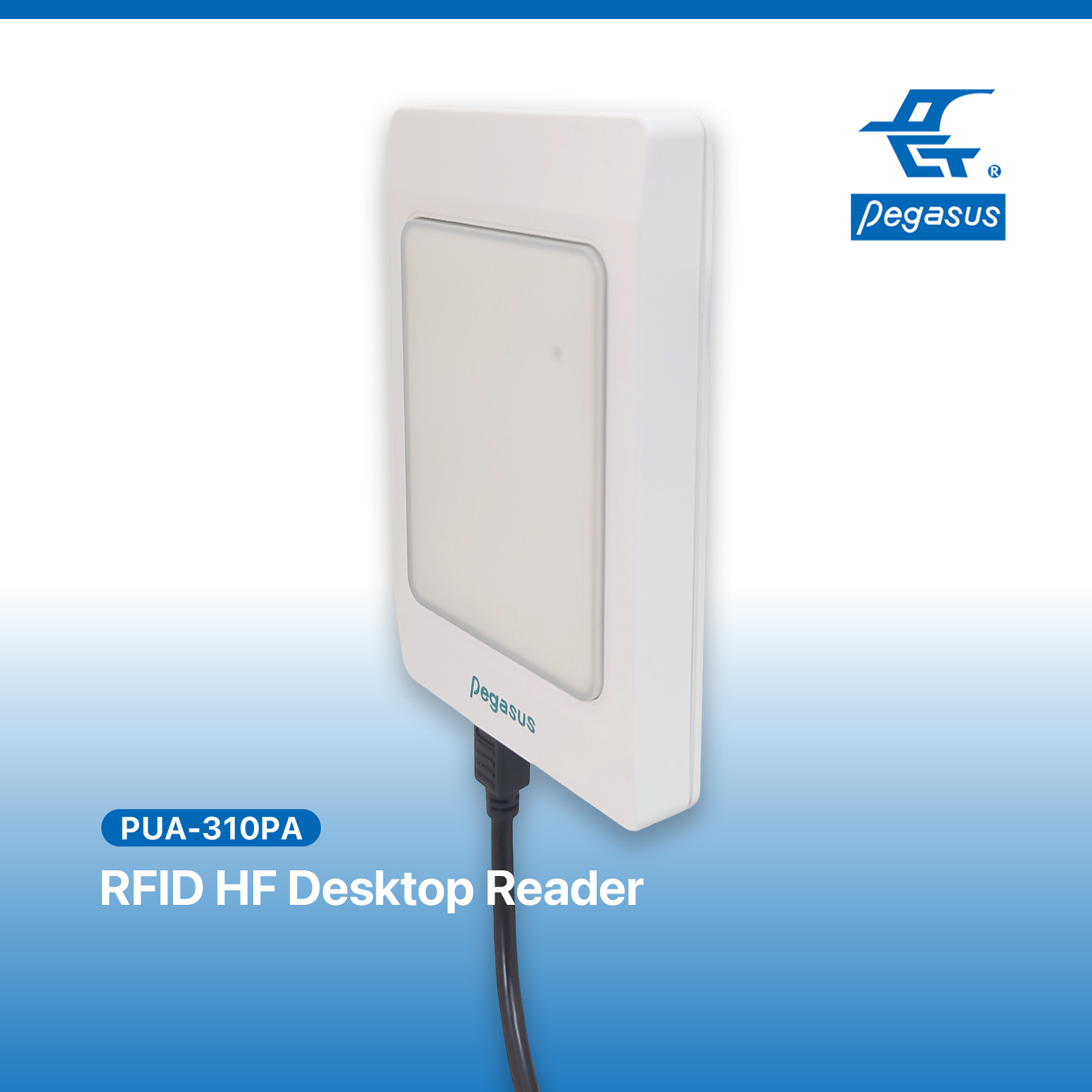

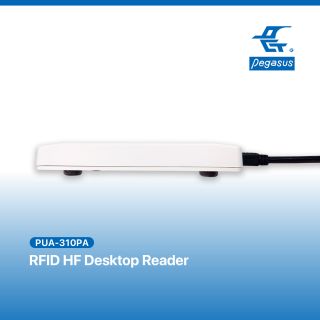

RFID HF desktop reader(With multi card formats output by the software)
USB Interface: Connects to computers via a USB interface, simulating a serial port without requiring an external power supply.
Automatic Card Detection: Automatically detects and reads UID, enhancing user efficiency.
User-Friendly Indicators: Equipped with dual-color power and status indicators and a built-in buzzer for intuitive operational guidance, improving user convenience.
- EV Charging Station Management: Supports RFID-based user authentication and record tracking.
- Membership Management Systems: Ideal for gyms, libraries, and similar venues requiring fast identity verification.
- Payment Systems and POS: Enhances transaction efficiency, supporting various payment terminal devices.
- Production Control Applications: Logs operator identities and equipment status during production processes to improve management efficiency.
- Vehicle Rental Systems: Facilitates user identity verification and record keeping for rental applications.
PUA-310PA Technical Specifications & Advantages
The PUA-310PA stands out with its ability to support various card output format requirements, reducing backend application development time. It integrates seamlessly into existing systems and offers high compatibility to meet diverse application needs.
- Frequency Support: 13.56MHz, compatible with Mifare and NFC Ntag213/215/216 formats.
- Interface Design: Connects to computers via USB, simulating a serial port without requiring external power.
- Output Configuration: Adjustable digit lengths and numeral formats (forward/reverse and continuous/non-continuous card numbers), with automatic card detection and UID reading.
 |
 |
 |
| Charging station | HMI、PLC | Production control |
 |
 |
 |
| Vehicle rental system | Kiosk/POS System | Membership System |
 |
||
| Library automation |
| Feature | PUA-310PA | PUA-310VM2 |
| Frequency Support | 13.56 MHz (Mifare) | 13.56 MHz (Mifare, ISO 14443A/B, 15693) |
| Communication Interface | USB | USB, RS-232, RS-485 |
| Protection Level | N/A | IP54 (Waterproof and dustproof) |
| Functionality |
Supports multiple digit lengths and numeral formats via software configuration | Supports RFID card reading and writing |
- How do I install the PUA-310PA?
- What are the use cases for the PUA-310PA?
Mifare is a registered trademark of NXP B.V.
MIFARE DESFire is a registered trademark of NXP B.V.
