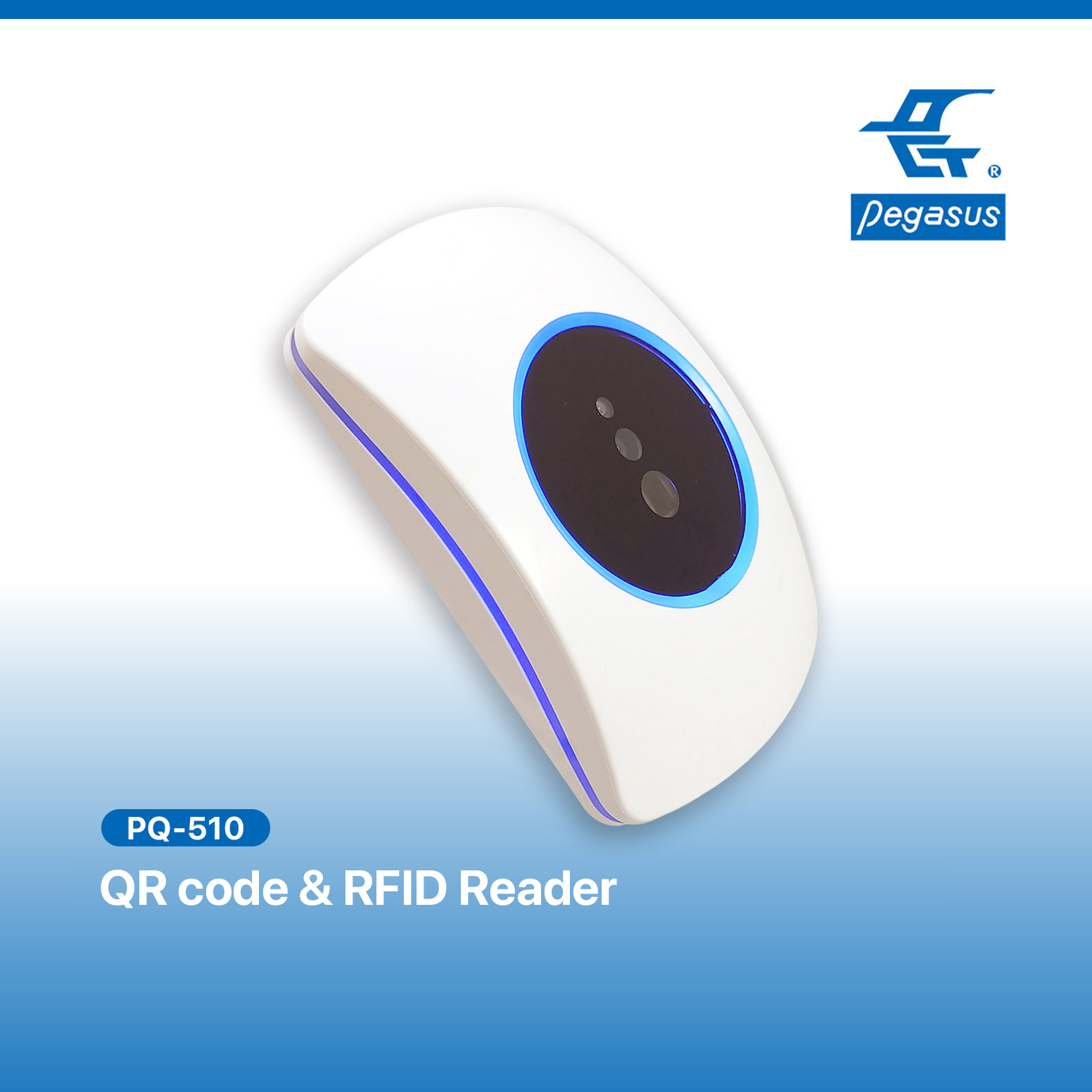

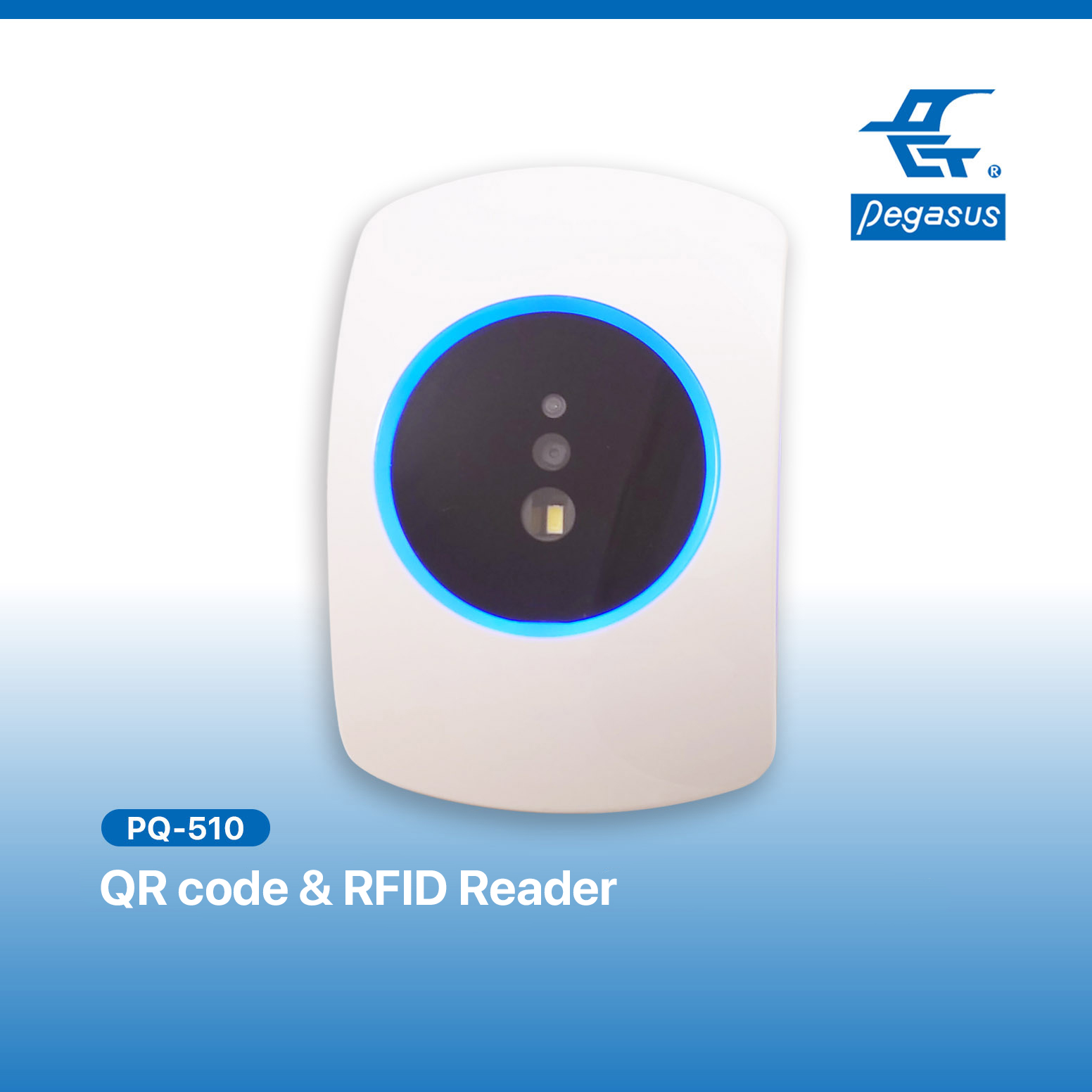

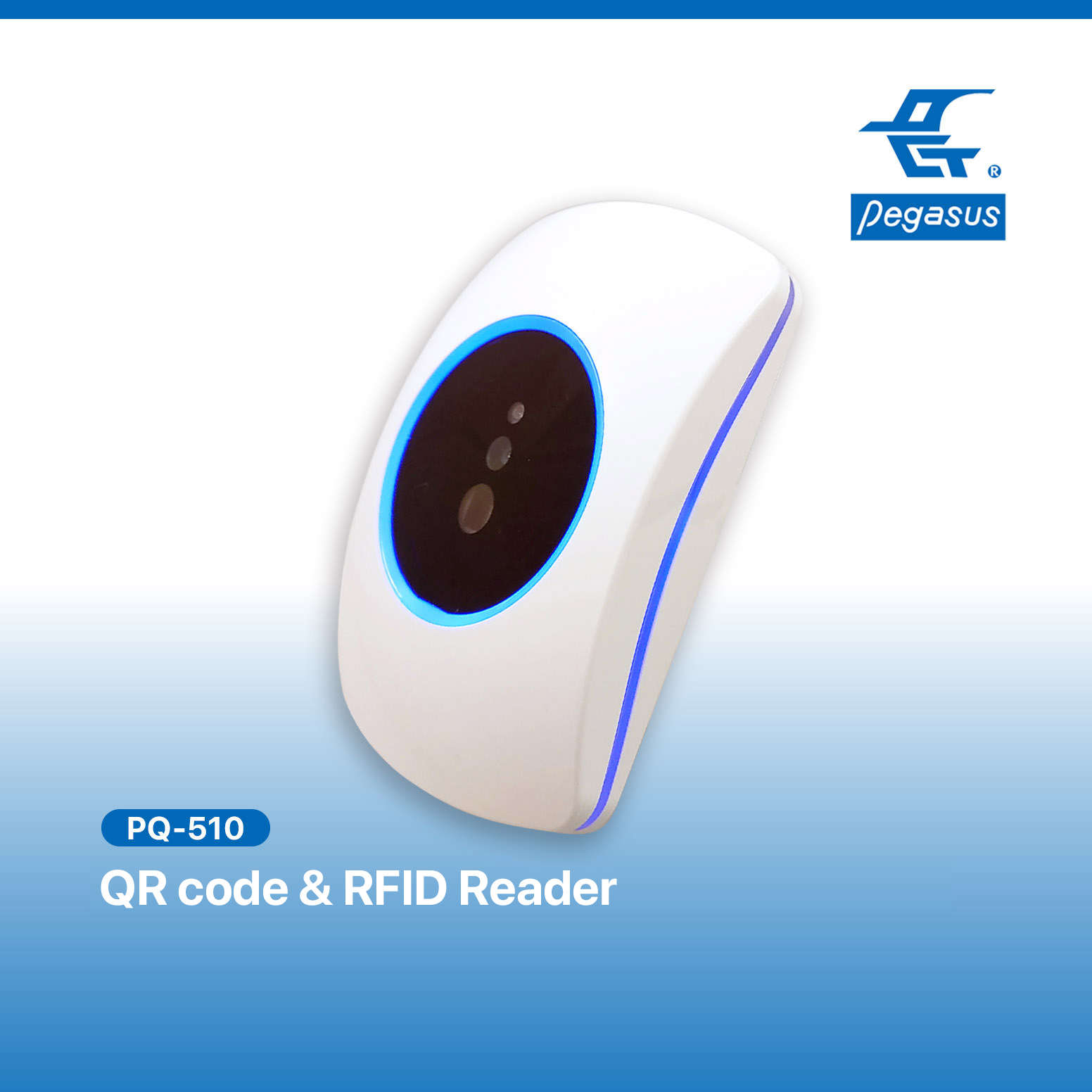

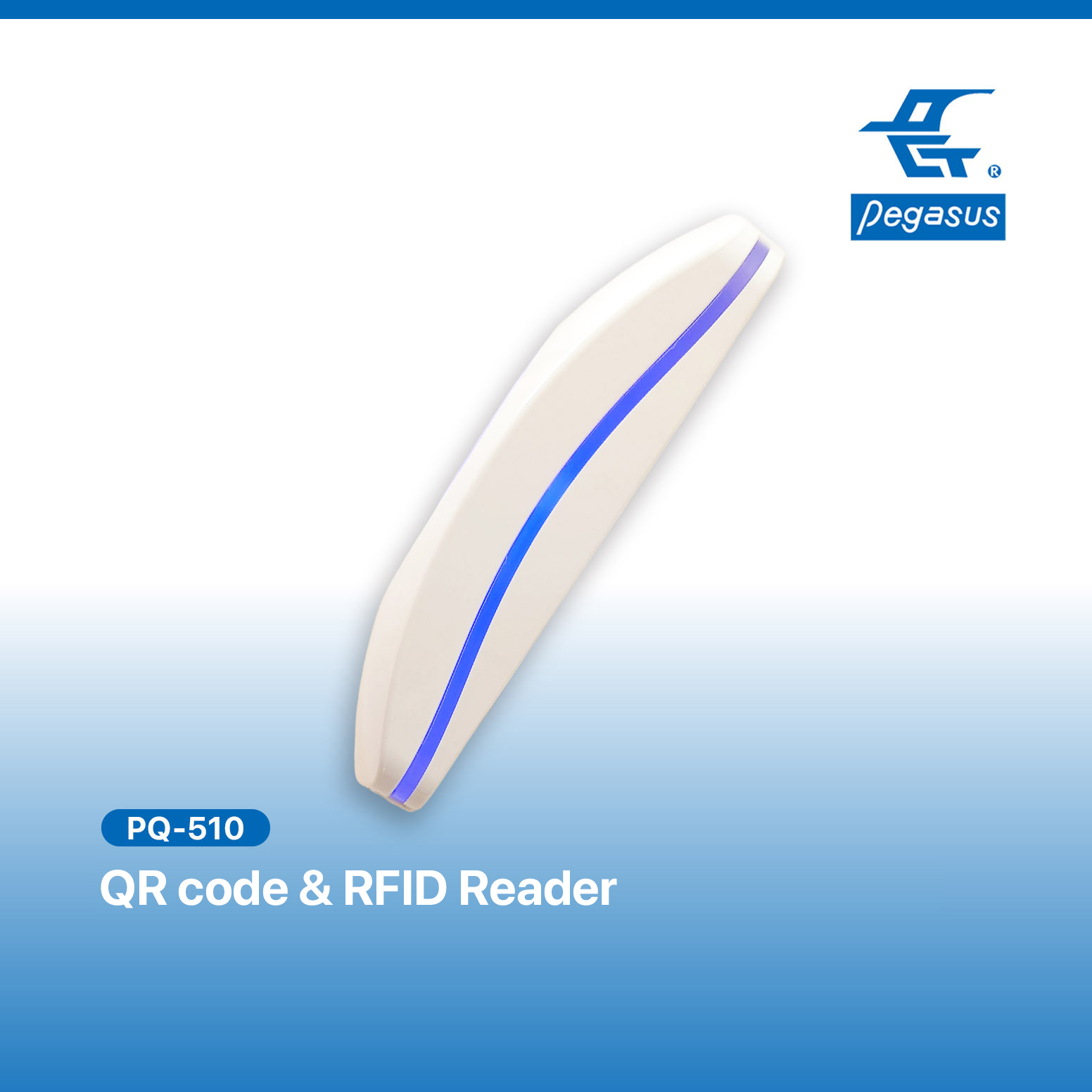

Model：PQ-510
QR code & RFID reader
Dual-Function Design: Combines QR Code scanning and RFID reading in one device, supporting 125KHz and 13.56MHz frequencies.
High Compatibility: Supports popular RFID card formats such as EM, H.I.D., Mifare, Felica, NFC Ntag213/215/216.
Barcode Versatility: Compatible with both 2D QR Code and 1D Barcode formats.
Easy Installation: Wall-mounted design with multiple connection interfaces, including RS-232, RS-485, and USB, for seamless system integration.
Flexible Applications: Generates access-authorized QR Codes (one-time or time-sensitive) via Pegasus software, usable through mobile photos, email, or direct printing.
High Compatibility: Supports popular RFID card formats such as EM, H.I.D., Mifare, Felica, NFC Ntag213/215/216.
Barcode Versatility: Compatible with both 2D QR Code and 1D Barcode formats.
Easy Installation: Wall-mounted design with multiple connection interfaces, including RS-232, RS-485, and USB, for seamless system integration.
Flexible Applications: Generates access-authorized QR Codes (one-time or time-sensitive) via Pegasus software, usable through mobile photos, email, or direct printing.
Certification
Product
PQ-510 QR Code & RFID Reader – Optimize Access Control and System Management with Ease!
The PQ-510 is a versatile QR Code and RFID dual-function reader, supporting 125KHz and 13.56MHz frequencies, along with various RFID card formats, 2D QR Code, and 1D Barcode standards. Widely applicable in access control, rental apartments, attendance, and event management, its wall-mounted design and multiple interface options ensure flexible integration, significantly enhancing system efficiency.
Applications of the PQ-510 QR Code & RFID Reader
- Access Control: Achieve quick identity verification and access control using RFID cards or QR Codes.
- Attendance Systems: Supports employee attendance and event check-ins, improving management efficiency.
- Production Control Systems: Tracks production progress and ensures every production step is monitored.
- Visitor Management/Rental Apartments: Visitors or tenants can access using QR Codes, which can be generated as one-time or time-sensitive access keys. QR Codes reduce the cost of card loss and reissuance.
Technical Specifications and Advantages of the PQ-510
- Wide QR Code Reading Range: Supports 125KHz and 13.56MHz frequencies, compatible with various card and barcode formats.
- High-Decoding Efficiency: Provides fast scanning and decoding capabilities for accurate and efficient data reading.
- Space-Saving Wall-Mounted Design: Convenient installation for integration into multiple applications.
- Multiple Output Interfaces: Offers flexible output options to adapt to various system architectures.
- Simple Operation: Easy installation with support for software-generated one-time or time-sensitive QR Codes for versatile usage.
How to Choose a QR Code & RFID Reader?
When choosing the PQ-510, consider the following factors based on your needs:
- Application Requirements: Does it need to support both QR Code and RFID functionalities for access control, event attendance records, or visitor management?
- Hardware Design: Does the wall-mounted structure suit your installation environment?
- Interface Needs: Ensure the output interfaces are compatible with your existing system.
- Flexibility: Verify its compatibility with various RFID cards and barcode formats to meet multifunctional applications.
Application field
 |
 |
 |
 |
 |
| Personal access control | Suite rental management | Metting attendance | Charging station | HMI、PLC |
 |
 |
 |
 |
 |
| Production control | Membership System | Vehicle rental system | Library automation | Kiosk/POS System |
| Model No. | PQ-510N | PQ-510H | PQ-510M0 | PQ-510F |
| Frequency | 125KHz ASK | 125KHz FSK | 13.56MHz | 13.56MHz |
| Compatibility | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | H.I.D. | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(選項), ICODE-2(選項) | ISO 14443 A MIFARE® Classic, Plus, Ultralight, ISO 18092 Felica, NFC |
| Power Voltage | DC 12V | |||
| Output Format/ Interface |
Wiegand / UART / RS-232 / RS-485 / USB / TCP/IP / OSDP | |||
| QR code Barcode |
Support Number / English letter / Symbol, 32 characters in total 120 characters(Optional) |
|||
| Symbologies | 1D: UPC-A、UPC-E、EAN-13、ISBN10、ISBN13、EAN-8、CODE39、CODE11、CODE93、MSI、CODE128 INTERLEAVED25、 INDUSTRIAL25、MATRIX25、S25、CODE 32、TRIOPTIC39、GS1_128、CODABAR、TELEPEN、RSS、GS1_DATABAR、GS1_DATABAR_LIM、GS1_DATABAR_EXP 2D: QR、MICROQR、PDF417、MICROPDF、DATAMATRIX、MAXICODE、AZTEC、CODABLOCK_F |
|||
| IP Rating | IP54 | |||
| Dimensions (LxWxH)mm | 125x83x27 | |||
Dimension: Unit(mm)
Ordering information
| PQ-510HW | 125KHz FSK H.I.D. & QR Code(Barcode)reader, Wiegand26 & 34bits |
| PQ-510H2W | 125KHz FSK H.I.D. & QR Code(Barcode)reader, HC(Wiegand 26~37bits,Depending on card),QR code(Wiegand 26 & 34bits) |
| PQ-510NW | 125KHz ASK EM & QR Code(Barcode)reader, Wiegand26 & 34bits |
| PQ-510M0W34 | 13.56MHz Mifare & QR Code(Barcode)reader, Wiegand34bits, Read card number: in reverse |
| PQ-510M0W34S | 13.56MHz Mifare & QR Code(Barcode)reader, Wiegand34bits, Read card number: in positive |
| PQ-510MDR2HS | 13.56MHz Mifare & Mifare DESFire & QR Code(Barcode)reader, RS-232, Hexadecimal, Read card number: in positive |
| PQ-510R5 | QR Code(Barcode)reader, RS-485 |
| PQ-510R2 | QR Code(Barcode)reader, RS-232 |
| PQ-510W | QR Code(Barcode)reader, RS-232 |
Frequently Asked Questions (FAQ)
● What RFID formats and barcodes does the PQ-510 support?
It supports EM, H.I.D., Mifare, Felica, NFC Ntag213/215/216 card formats, along with 2D QR Code and 1D Barcode standards.
● How are QR Codes generated and used?
QR Codes can be generated via Pegasus software as time-sensitive or one-time use codes, and can be utilized via mobile photos, email, or print.
● How do I install the PQ-510?
The wall-mounted design supports RS-232, RS-485, USB, UART, TCP/IP, and OSDP interfaces, ensuring easy installation and integration.
Pricing and Purchasing Information
The PQ-510 offers a cost-effective solution for various applications, including access control, attendance management, production control systems, and visitor/rental apartment management. For detailed pricing or purchasing recommendations, contact Pegasus for comprehensive information. OEM and ODM customization services are also available to ensure the solution fits specific application scenarios and system requirements.
Mifare is a registered trademark of NXP B.V.
MIFARE DESFire is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
If you are interested in detailed specifications, pricing, or purchasing information for the PQ-510, please contact Pegasus:
● Phone: +886-2-8228-0198
● Email: pongee@pegasus.com.tw
● Address: 5F., No.738, Chung-Cheng Rd., Chung-Ho District, New Taipei City 235603, Taiwan
The professional team at Pegasus will provide you with comprehensive product information and quotes, assisting you in selecting the most suitable RFID card reader for your needs.
MIFARE DESFire is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
If you are interested in detailed specifications, pricing, or purchasing information for the PQ-510, please contact Pegasus:
● Phone: +886-2-8228-0198
● Email: pongee@pegasus.com.tw
● Address: 5F., No.738, Chung-Cheng Rd., Chung-Ho District, New Taipei City 235603, Taiwan
The professional team at Pegasus will provide you with comprehensive product information and quotes, assisting you in selecting the most suitable RFID card reader for your needs.
Specification
Frequency
125KHz / 13.56MHz
Compatibility
125KHz ASK: ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 / 125KHz FSK: H.I.D. / 13.56MHz: ISO14443 A, MIFARER Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ISO15693(Optional), ISO18092 FeliCa
Power Voltage
DC 12V
Output Format/ Interface
Wiegand / UART / RS-232 / RS-485 / USB / TCP/IP / OSDP
IP Rating
IP54
Dimensions (LxWxH)mm
125x83x27
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
