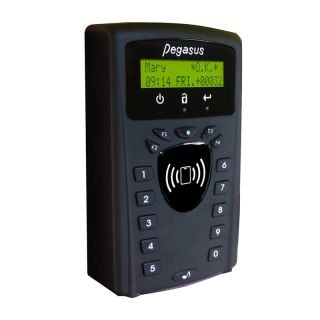

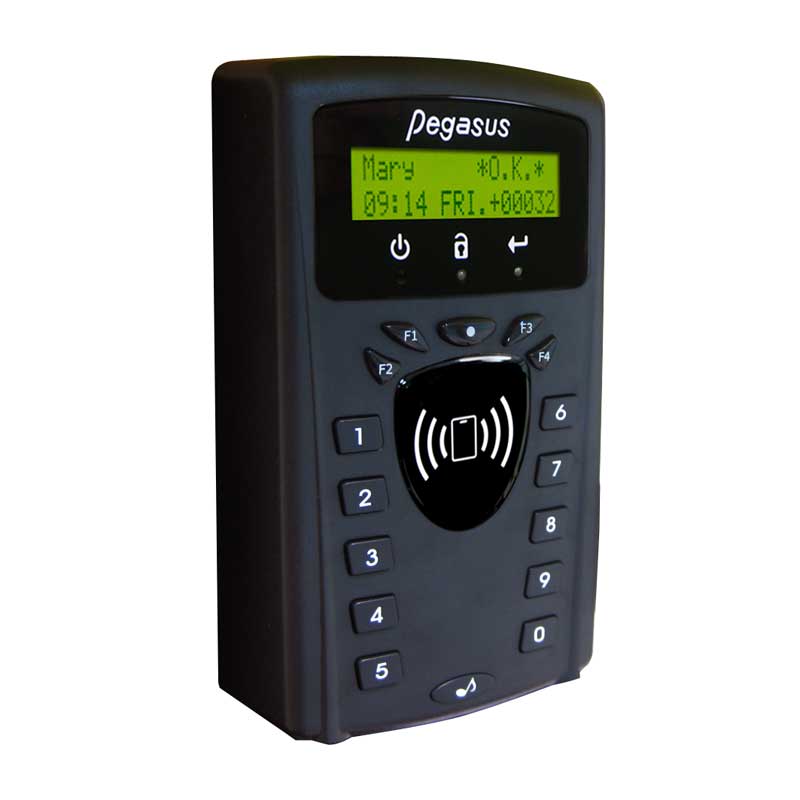

Model:PP-3702T

Multi-Function Networked controller

  • Single door (one-way or two-way control)
  • Classic Graphic Display Multi-Function Controller
  • Support 32000 Cards (Standalone/Networked)
  • Built-in LED and Buzzer indicator, door bell
  • Multiple access method: Card only, PIN code only, Card with PIN code
  • IP54 weatherproof for indoor/outdoor use
compare Compare Inquiry (0)
Certification
Product

System configuration

Access control system


Lift access control system

Application field



Dimension: Unit(mm)

Ordering information

PP-3702XNT 125KHz ASK EM Networked controller
PP-3702XHT 125KHz FSK H.I.D. Networked controller
PP-3702XM0T 13.56MHz Mifare Networked controller
PP-3702XFT 13.56MHz FeliCa Networked controller


Mifare is a registered trademark of NXP B.V.
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
Specification
Frequency
125KHz / 13.56MHz
Compatibility
125KHz ASK: ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 / 125KHz FSK: H.I.D. / 13.56MHz: ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ISO15693(Optional), ISO18092 FeliCa
User Capacity
32000 card capacity ; 32000 events
Power Voltage
DC 12V
Interface
RS-485, RS-232, TCP/IP
Input
Exit push button / Door monitor / Security sensor
Output
Alarm output / Tamper switch output / Electric lock output
Keypad
Unfading keypad
Material
ABS
Wiegand input
Wiegand (26/34 bits)
Dimensions (LxWxH)mm
174x100x43
IP Rating
IP54
Doorbell
YES
LCD Panel
YES
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
