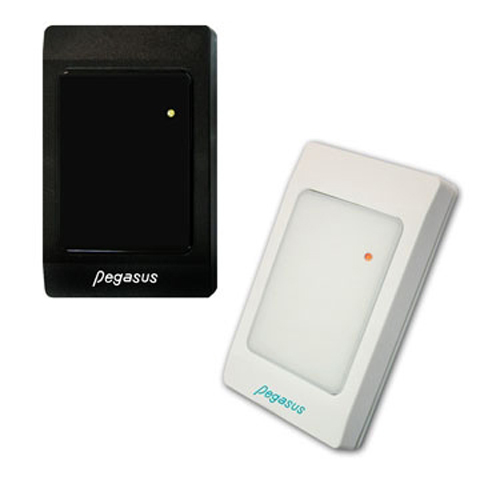

Multi RFID Reader
- Multi RFID reader & writer
- Support 125KHz(EM / H.I.D.) & 13.56MHz(Mifare / DESFire / FeliCa / ICODE-2)UID
- 13.56MHz Writer
- Surface mount, waterproof
Application field
 |
 |
 |
| Charging station | HMI、PLC | Production control |
 |
 |
 |
| Vehicle rental system | Kiosk/POS System | Membership System |
 |
||
| Library automation |
Dimension: Unit(mm)
| Model No. | PUA-310V1-0/N | PUA-310V1-0/H | PUA-310V1-0/M0 | PUA-310V1-0G | PUA-310V1-0NM0 |
| Frequency | 125KHz ASK | 125KHz FSK | 13.56MHz | 13.56MHz | 125KHz & 13.56MHz |
| Compatibility | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567 | H.I.D. | ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESfire, NFC | Felica, Mifare, Mifare Ultralight, Mifare DESFire, NFC Tag, ISO14443B, ISO15693 | ISO18000-2 EM4001, 4100, 4102, TEMIC 5567, ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC |
| Power Voltage | DC 5V / 12V / 24V±10%, DC 7V~32V(Optional) | ||||

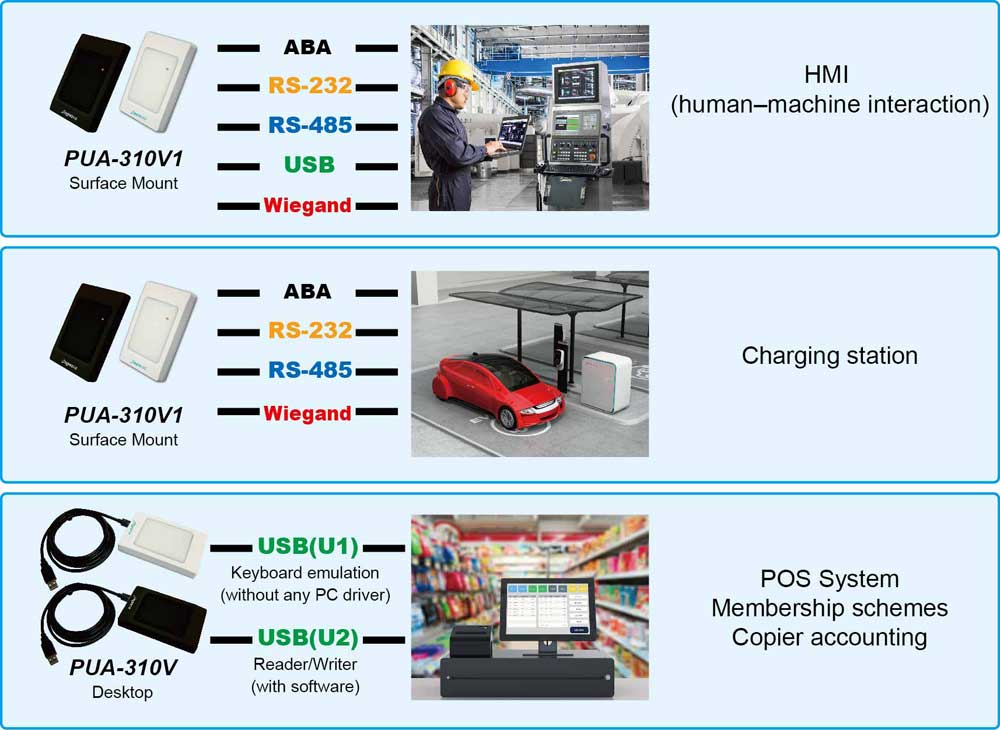

| Output Format/ Interface |
Wiegand / ABA / UART / RS-232 / RS-485 / USB | ||||
| Device Driver Operating System Support | *Windows XP SP2 / Vista / 7 / 8 / 8.1 / 10 *Mac OS 8/9, OS X *Linux/Android *Windows 11(Optional) |
||||
| IP Rating | IP54 | ||||
| Dimesions(LXWXD)mm | 118x75x17 | ||||
Accessories
| Model No. | R-21-310-3N(White) / R-21-310-3B(Black) |
| Feature | Avoid intervention |
| Dimension(LXWXD)mm | 119.6x76.5x15 |
| Material | Acrylic |
Ordering information
