Model：PP-22

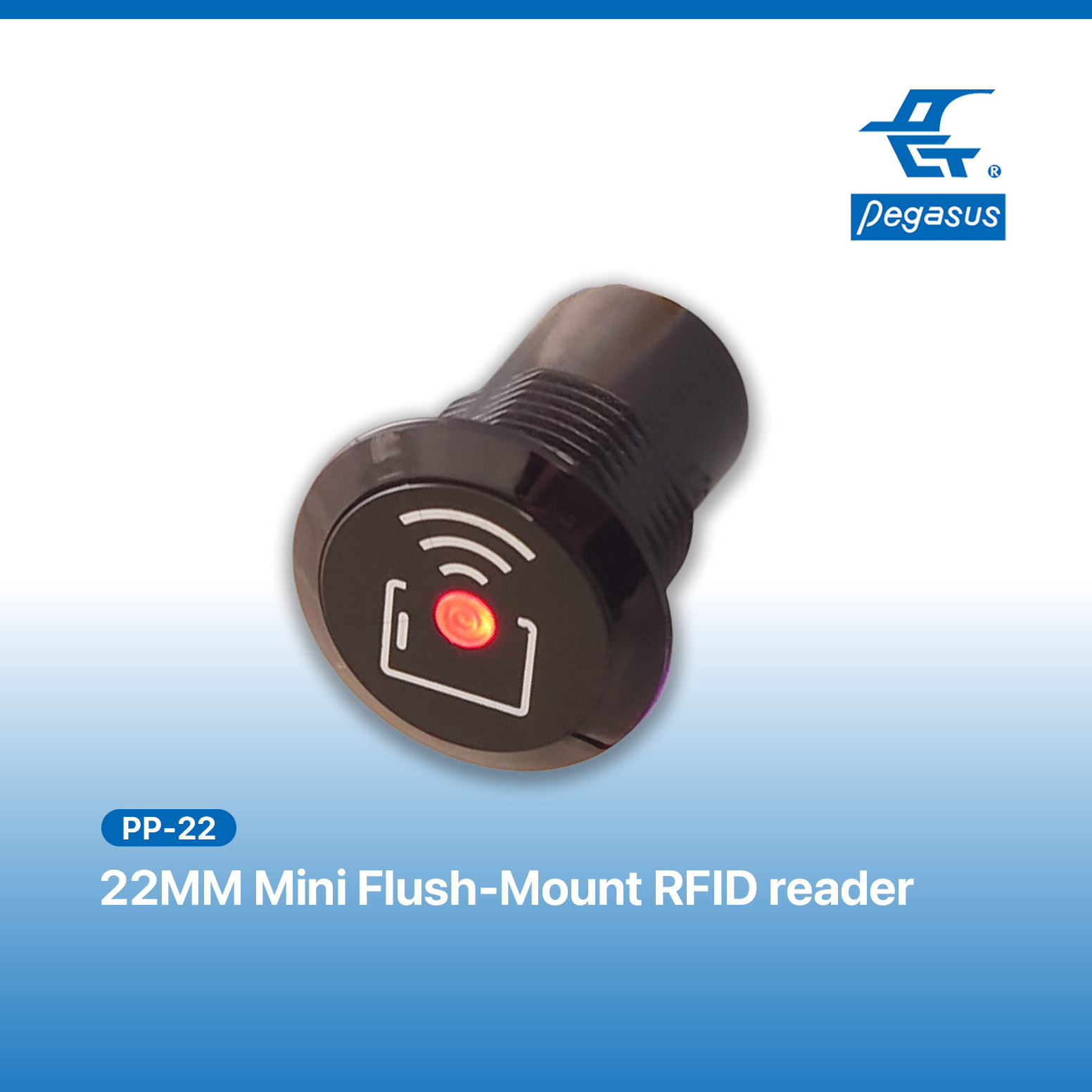

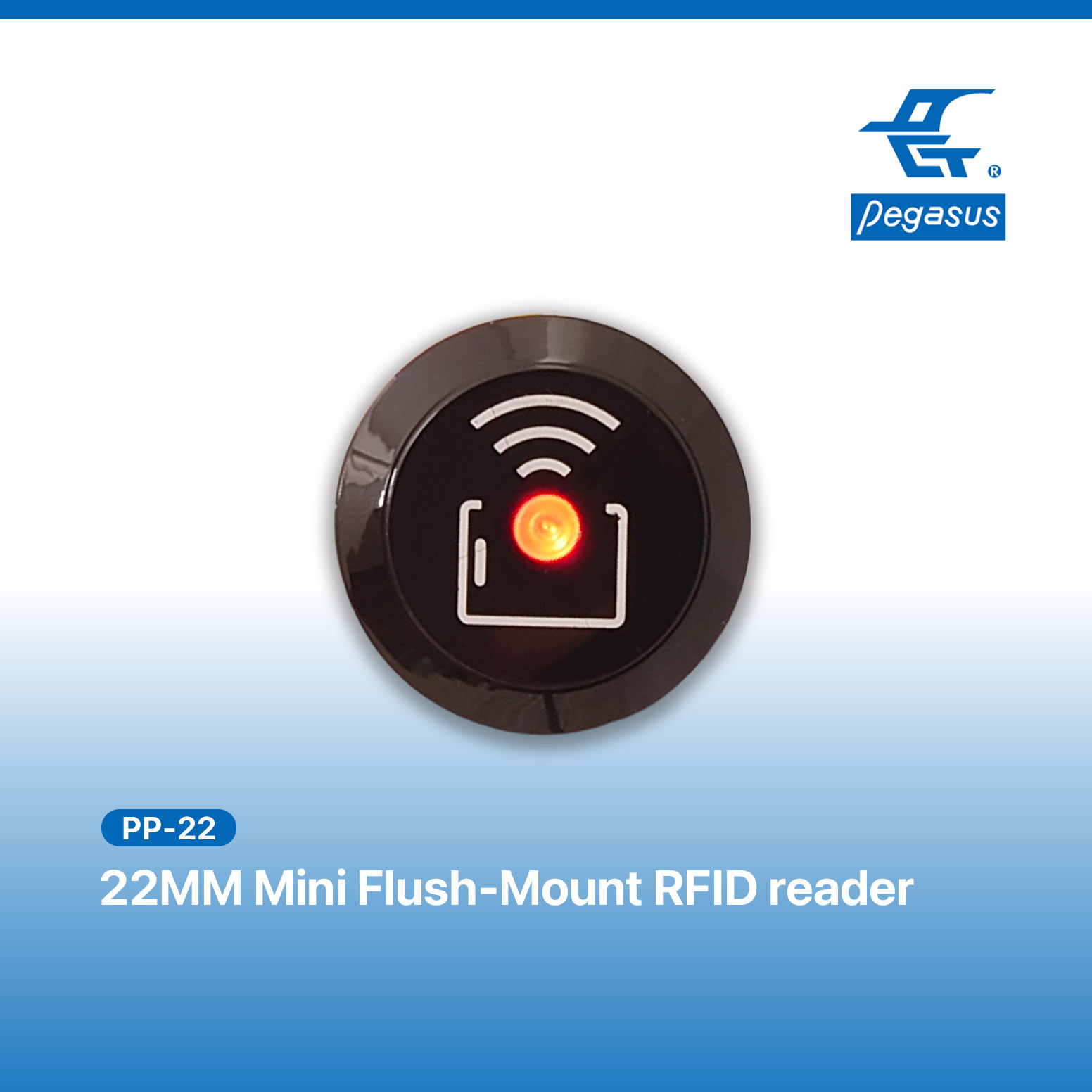

22MM Mini Flush-Mount RFID reader
Mini Design: Adopts a high protection level, can be embedded into space-limited access control devices, saving space while providing efficient identity recognition.
Supported Frequencies: 13.56 MHz; compatible with MIFARE® Classic, Plus, Ultralight, DESFire, NFC Ntag213/215/216, ISO14443 B (optional), and ICODE-2 (optional).
Easy Installation: Only requires drilling a 22MM diameter hole for installation. Easy to install with IP68 waterproof and dustproof rating.
Wide Application: Suitable for access control, elevator floor management, production line HMI equipment, intercom systems, and various other scenarios.
Operating Voltage Range: DC7~28V, compatible with most power supplies on the market.
Supported Frequencies: 13.56 MHz; compatible with MIFARE® Classic, Plus, Ultralight, DESFire, NFC Ntag213/215/216, ISO14443 B (optional), and ICODE-2 (optional).
Easy Installation: Only requires drilling a 22MM diameter hole for installation. Easy to install with IP68 waterproof and dustproof rating.
Wide Application: Suitable for access control, elevator floor management, production line HMI equipment, intercom systems, and various other scenarios.
Operating Voltage Range: DC7~28V, compatible with most power supplies on the market.
Certification
Product
22mm Mini Embedded RFID Reader PP-22: The Perfect Partner for Small-Space Access Control Equipment!
The PP-22 is a mini and multifunctional RFID reader supporting a 13.56 MHz frequency and multiple RFID communication protocols. Its waterproof and dustproof design with an IP68 rating ensures stable operation even in harsh environments.
Space-Saving Compact Size for Limited-Space Access Control Devices.
This reader provides rapid identity recognition in various applications, enhancing system efficiency and security:
- Access Control Systems: Achieve quick identity verification.
- Mailbox Management Systems: Use authorized cards to unlock, replacing traditional keys to enhance security. Can connect to controllers and access software to query card usage records.
- Elevator Floor Management: Securely control floor access permissions.
- Intercom Systems: Supports user identity verification.
- HMI and Equipment Management: Enhances usage, control, and management for production personnel.
PP-22 Technology and Advantages
Designed with a waterproof and dustproof structure and a mini embedded form, the PP-22 is specifically crafted for equipment with limited space. Its embedded installation doesn't occupy extra space while achieving efficient and stable identity recognition, boosting system efficiency and security. Key technical advantages include:
- High Compatibility: Supports ISO14443 A/B, MIFARE® series cards, NFC Ntag213/215/216, and various other formats to flexibly meet diverse needs.
- High-Performance Reading: Operates at a stable 13.56MHz frequency, providing fast and accurate identity recognition and data transmission.
- Waterproof and Dustproof Design: IP68 protection rating adapts to harsh environments, ensuring long-term stable operation.
- Reduced Installation Costs: Mini embedded design requires only drilling a 22MM diameter hole, enabling quick and convenient installation.
- Multi-Purpose Application: Suitable for various scenarios, improving management efficiency and security.
How to Choose an RFID Reader — PP-22 Application Guide
When selecting the PP-22 RFID reader, consider the following requirements:
- Application Needs: Determine if you require scenarios like access control, equipment management, or payment.
- Installation Requirements: Ideal for devices with limited installation space.
- Function and Compatibility: Choose the appropriate device based on the RFID formats and functions you need.
- Environmental Requirements: Opt for devices with waterproof and dustproof ratings (like IP68) to suit different environments.
Application field
 |
 |
 |
 |
| Access control system | Mailbox management system | Intercom system | Lift access control system |
 |
 |
 |
 |
| Charging station | HMI、PLC | Production control | Vehicle rental system |
 |
 |
 |
|
| Kiosk/POS System | Membership System | Library automation |
Dimension: Unit(mm)
How to assembly
Frequently Asked Questions (FAQ)
- What RFID formats does the PP-22 support?
It supports multiple RFID formats, including MIFARE® Classic, Plus, Ultralight, DESFire, NFC Ntag213/215/216, etc.
- How is the PP-22 installed?
Installation only requires drilling a 22MM diameter hole. It's easy to install, suitable for space-limited environments, and comes with an IP68 waterproof and dustproof rating.
- What is the working voltage of the PP-22?
Its operating voltage range is DC 7~28V.
Pricing and Purchasing Information
The PP-22 RFID reader is a high-cost-performance solution suitable for access control, equipment management, intercom systems, and various other applications. Depending on your specific needs and budget, you can choose the appropriate configuration and enjoy customized services to suit specific environments and systems. For more information on pricing or purchasing advice, please contact our professional team for personalized suggestions and quotations.
Mifare is a registered trademark of NXP B.V.
MIFARE DESFire is a registered trademark of NXP B.V.
If you are interested in detailed specifications, pricing, or purchasing information for the PP-22, please contact Pegasus:
● Phone: +886-2-8228-0198
● Email: pongee@pegasus.com.tw
● Address: 5F., No.738, Chung-Cheng Rd., Chung-Ho District, New Taipei City 235603, Taiwan
The professional team at Pegasus will provide you with comprehensive product information and quotes, assisting you in selecting the most suitable RFID card reader for your needs.
Specification
Frequency
13.56MHz
Compatibility
ISO14443 A, MIFARE® Classic, Plus, Ultralight, DESFire, NFC (card simulation), ISO14443 B(Optional), ICODE-2(Optional)
Power Voltage
DC 7~28V
Output Format/ Interface
Wiegand / UART
IP Rating
IP68
Dimensions (LxWxH)mm
28.6x28.6x22
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
