Model：PBZ-22IR

Infrared Proximity Sensor, ø22mm, Metal

Form C relay output (1A@30VDC)
Adjustable output time 0.5~20 sec. Trigger / Toggle
Adjustable sensing range 0.5~10cm/3-15cm
Voltage : 10V/24V DC (auto-adjusting)
Front panel IP65 weatherproof for outdoor use

Compare Inquiry (0)

Certification

Product
Specification
Download

Product

Dimension: Unit(mm)

Example Applications

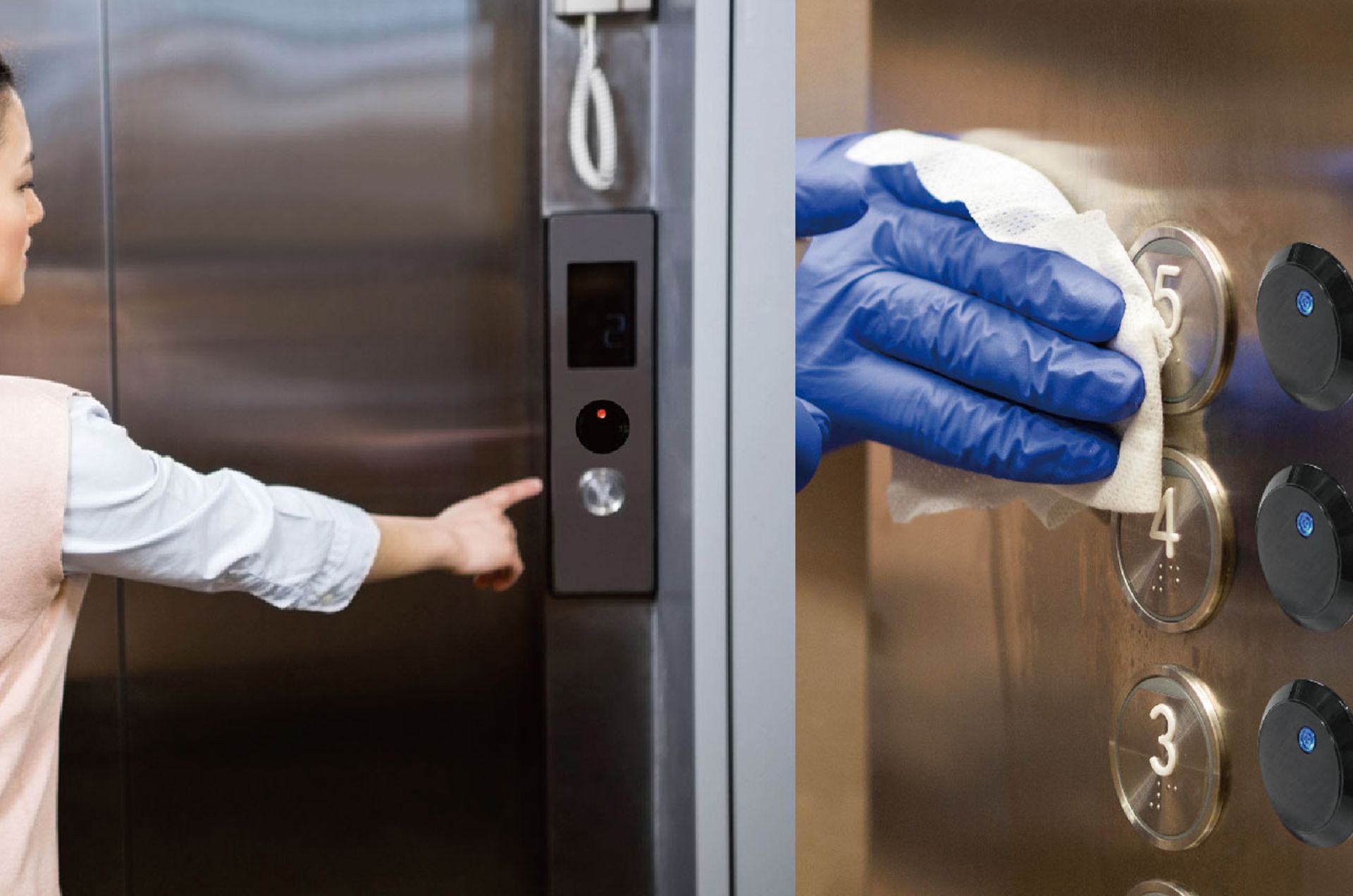

Elevator Buttons

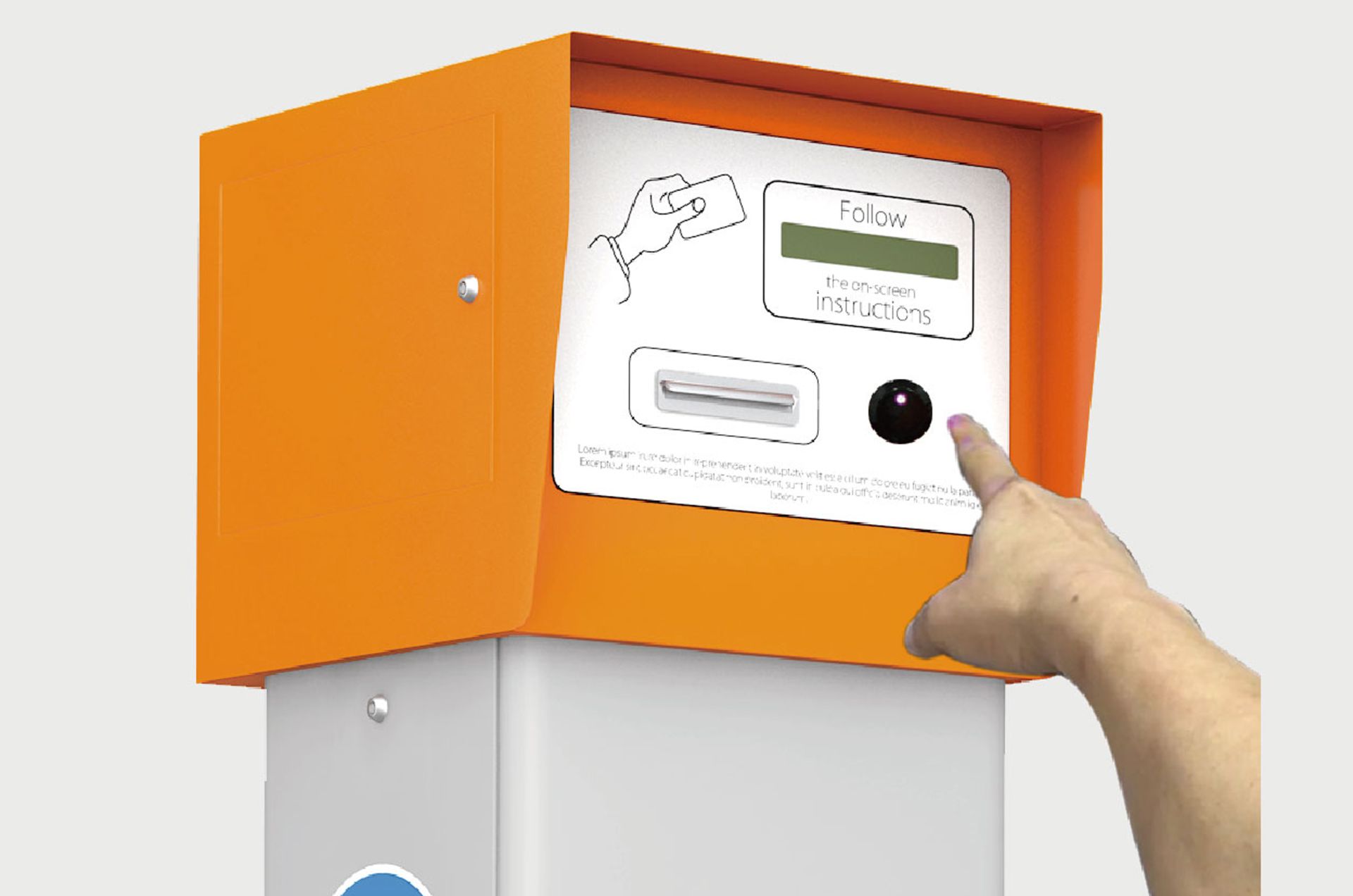

Parking Lot Ticket Machine
Water Dispensers

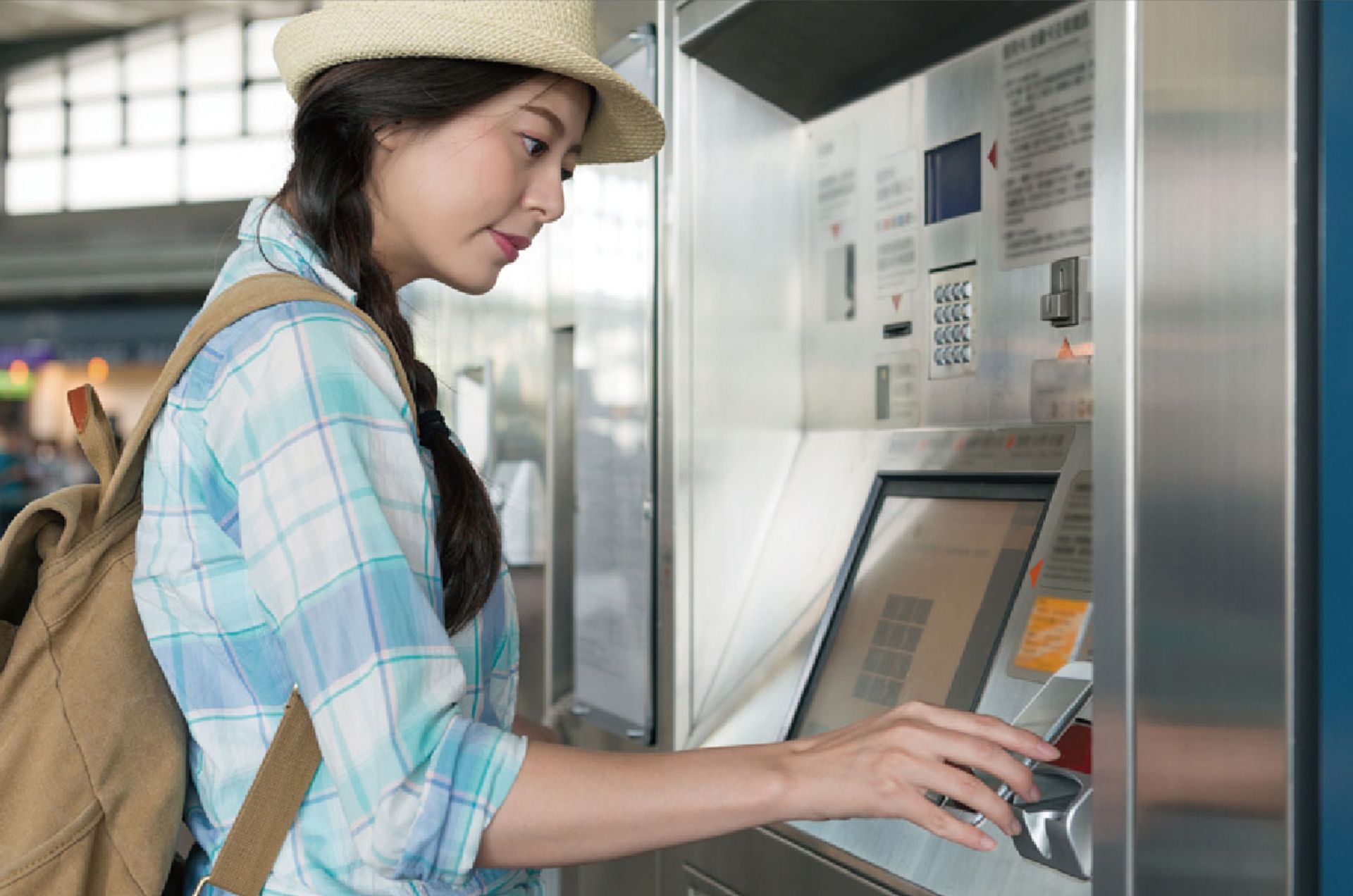

Ticket Machine

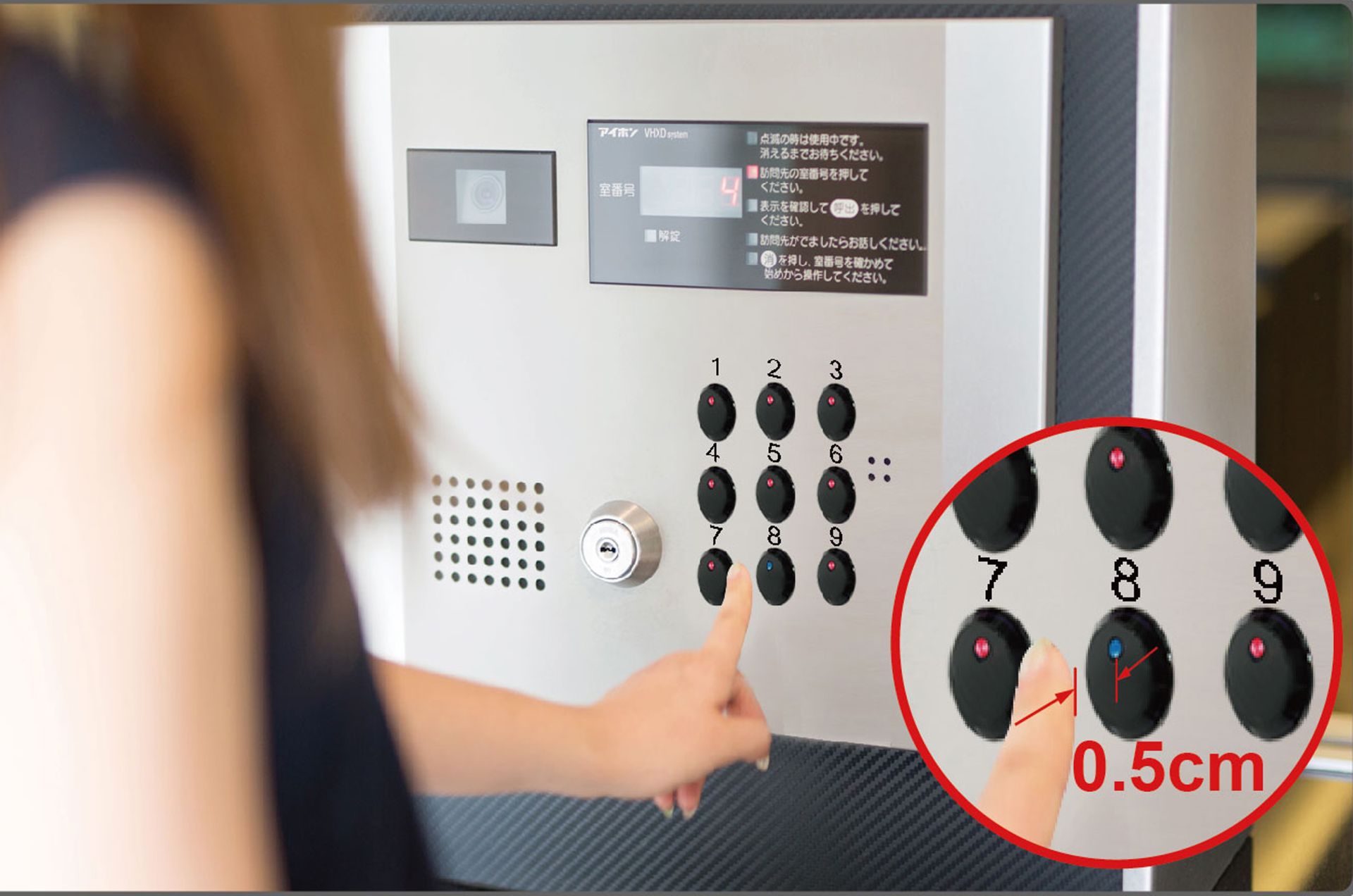

Device Switch

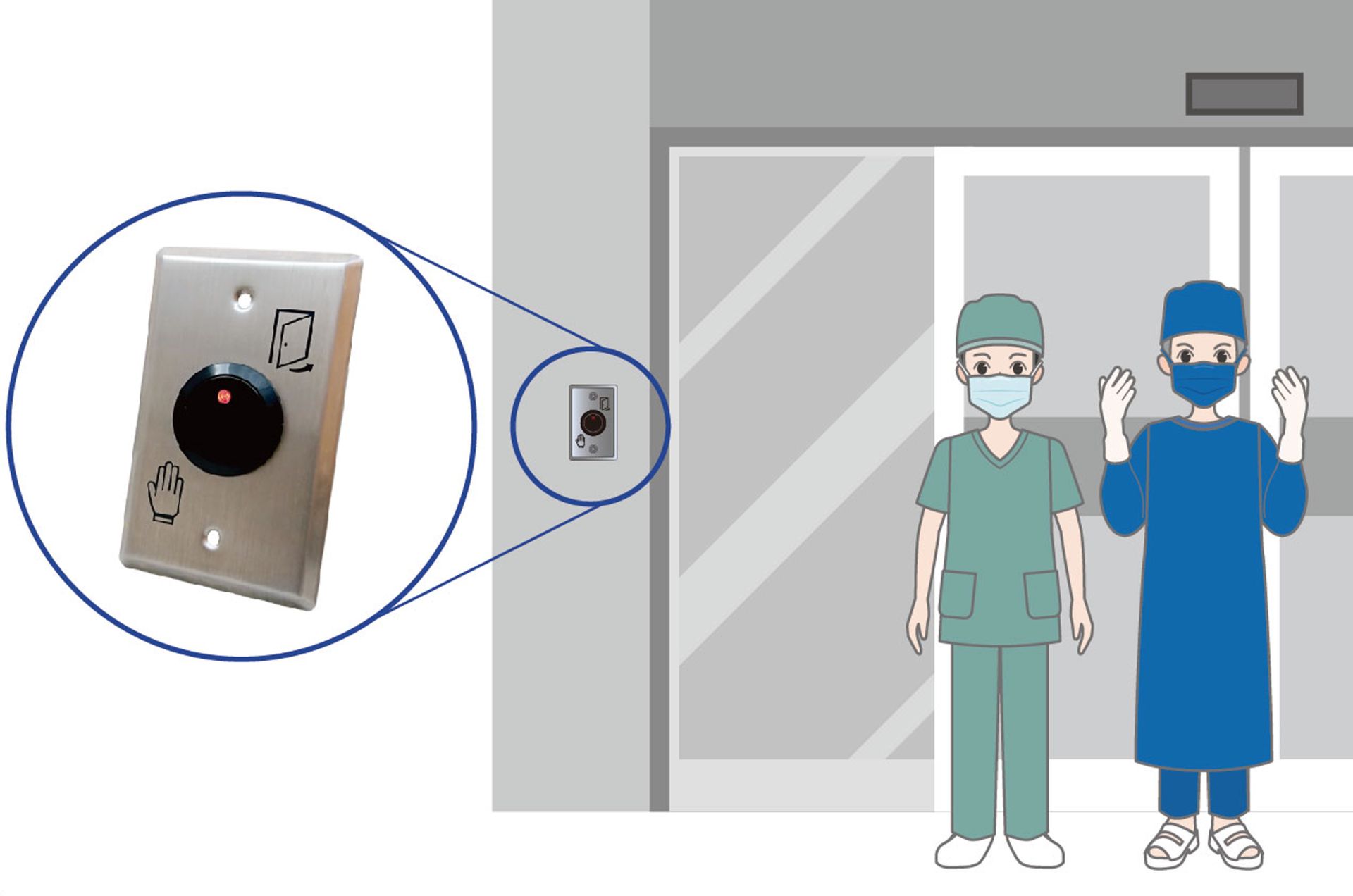

Hospital Door/Operating Room Automation Control

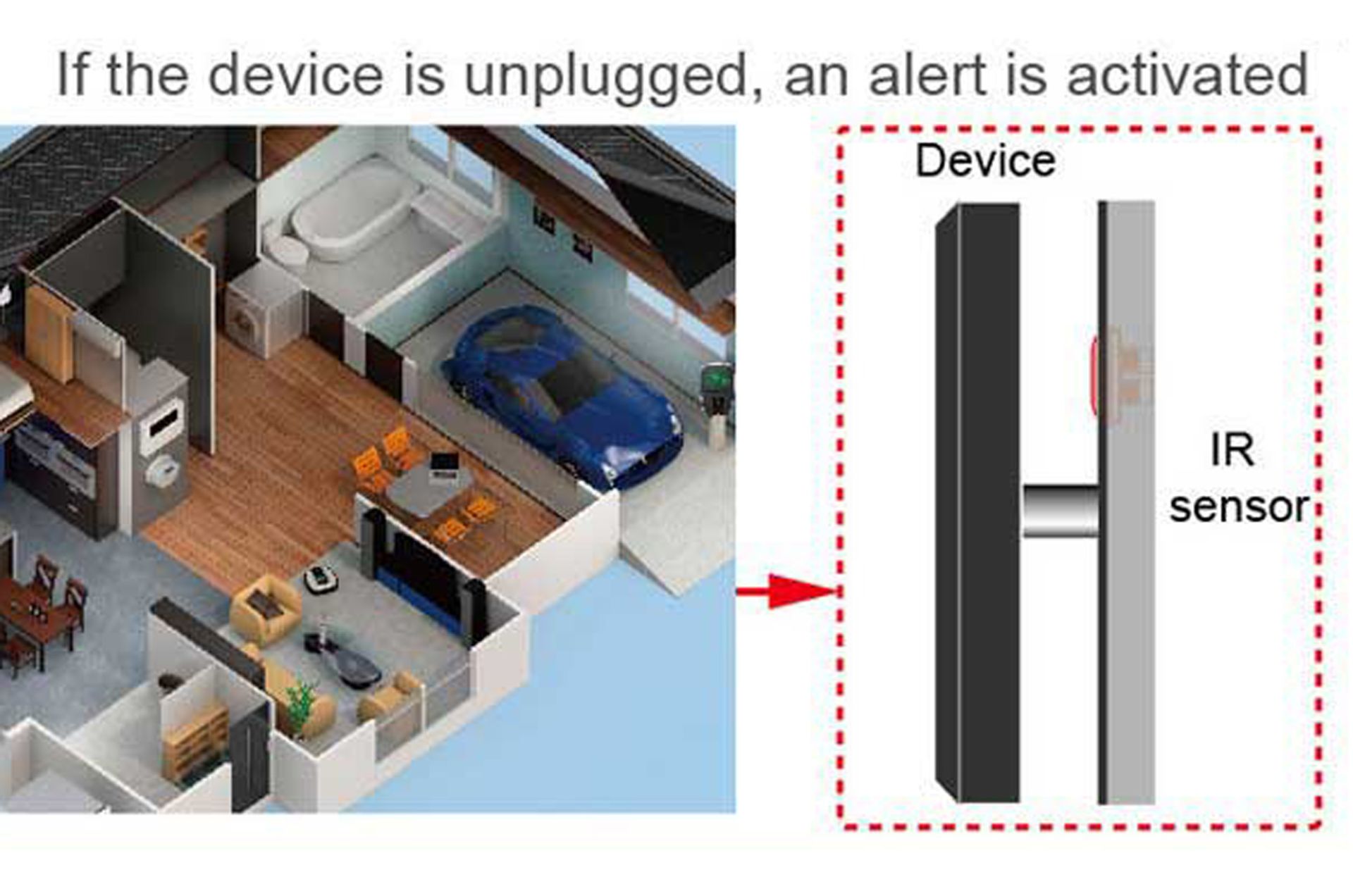

Anti-theft Detection

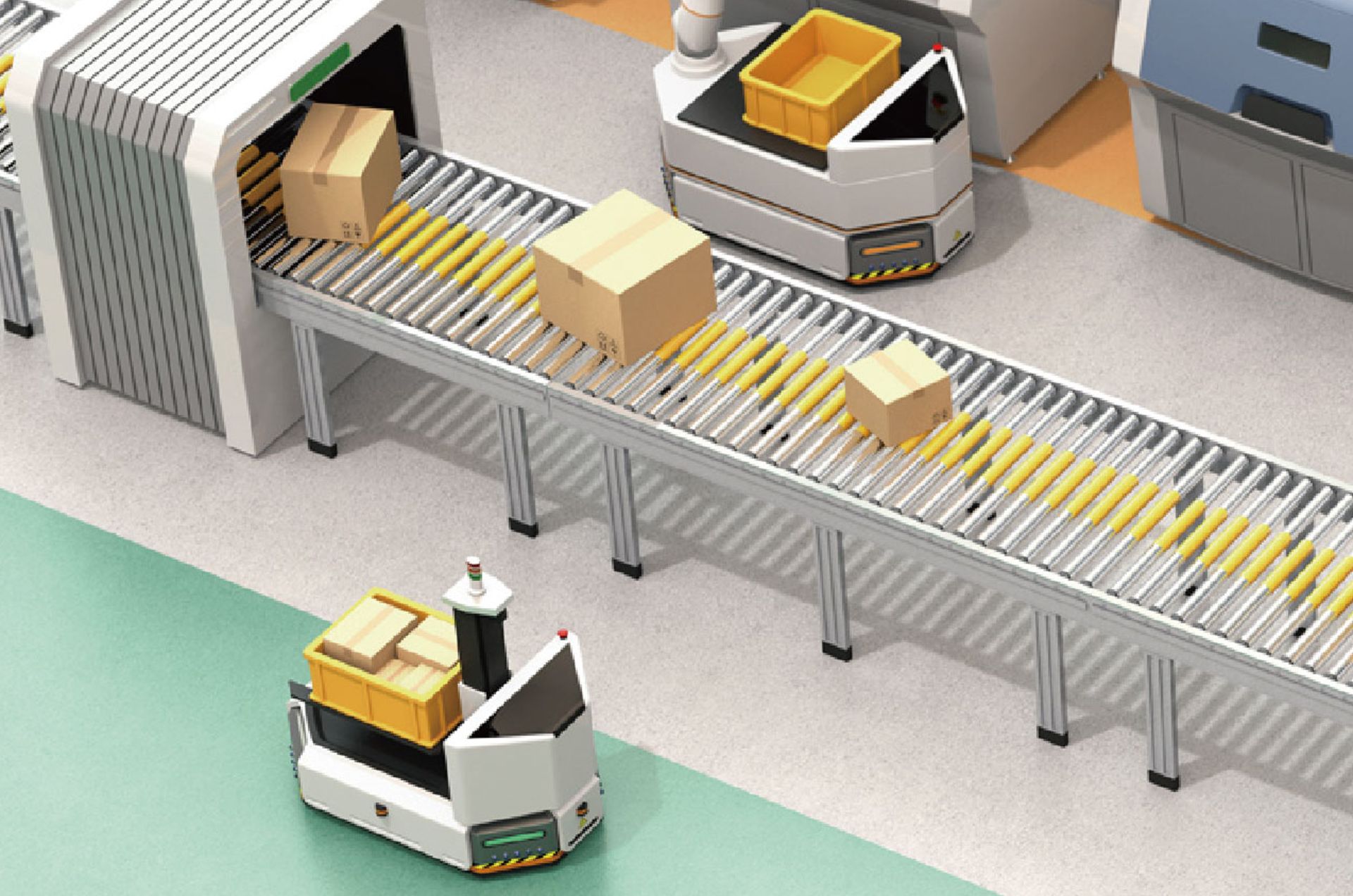

Automatic Location Detection

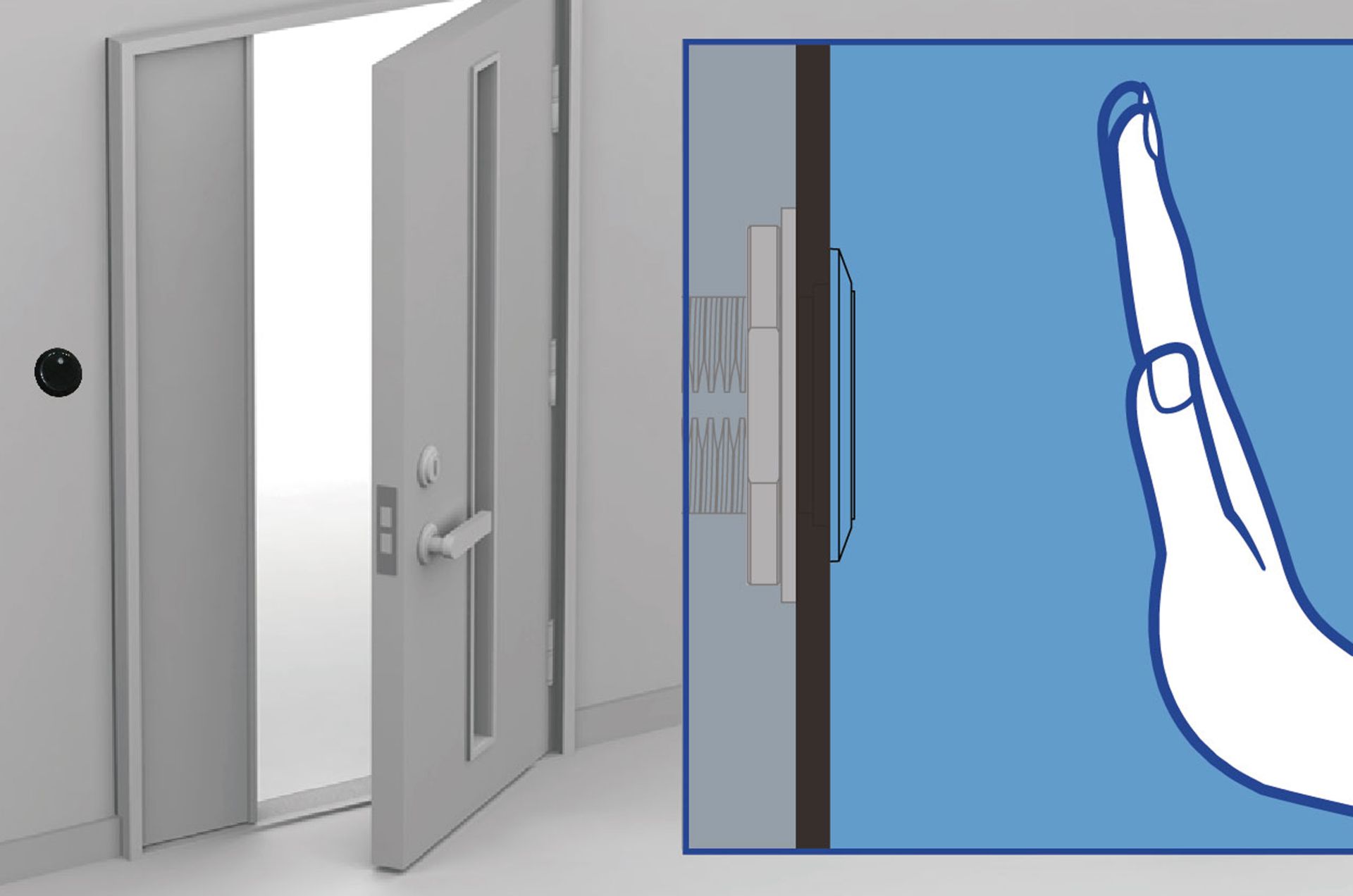

Gate/Door/Exit/Automation Control

Ordering information

PBZ-22IR	DC10~24V Contactless Infrared Sensor Switch, Adjustable proximity range: 3~15cm
PBZ-22IRS	DC10~24V Contactless Infrared Sensor Switch, Adjustable proximity range: 0.5~10cm

Specification

Dimension(mm)

25(L)x25(W)x38(D)

Voltage / Current

DC10V (55mA)~24V(33mA)

Relay type

Form C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@125VAC

Output time

0.5~20 sec, Trigger / Toggle

Sensor Range

3~15cm

LED Status indicator

Power on: Red, Proximity: Blue (Optional Blue/Green)

Case material

Metal (Brass, Optional: Stainless Steel)

IP Rating

IP65

Operating life

Relay: 100,000 cycles

Download

Selection Guides For Infrared Sensor Switch Series

Download

※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
