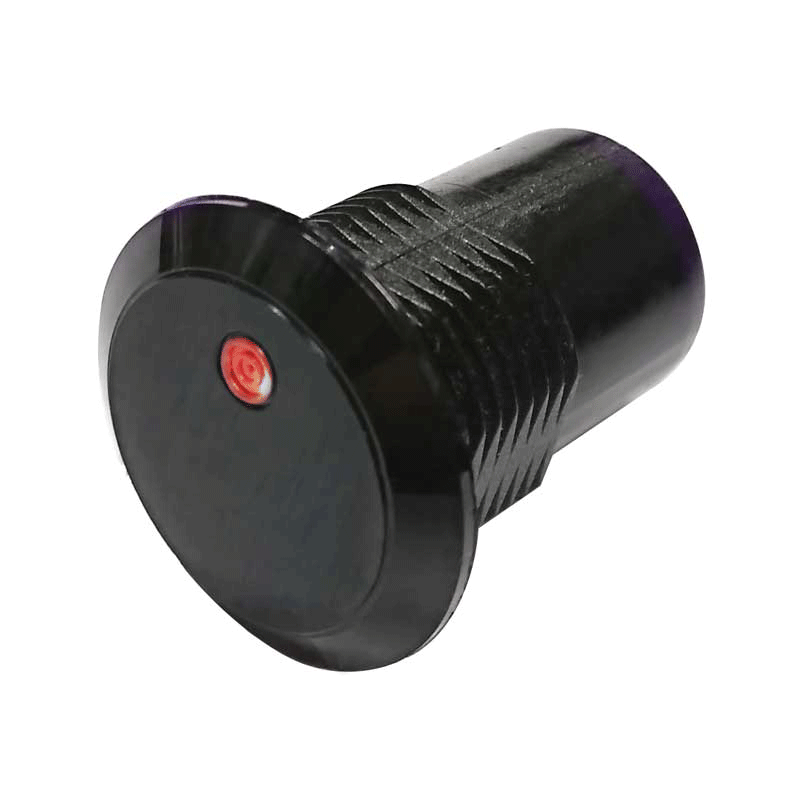

IR Proximity Sensor, ø22mm, Polycarbonate
- Form C relay output (1A@30VDC)
- Adjustable output time 0.5~20 sec. Trigger / Toggle
- Adjustable sensing range 0.5~10cm/3-15cm
- Voltage : 10V/24V DC (auto-adjusting)
- Front panel IP65 weatherproof for outdoor use
Dimension: Unit(mm)
Example Applications
-
Elevator Buttons
-
Parking Lot Ticket Machine
-
Water Dispensers
-
Ticket Machine
-
Device Switch
-
Hospital Door/Operating Room Automation Control
-

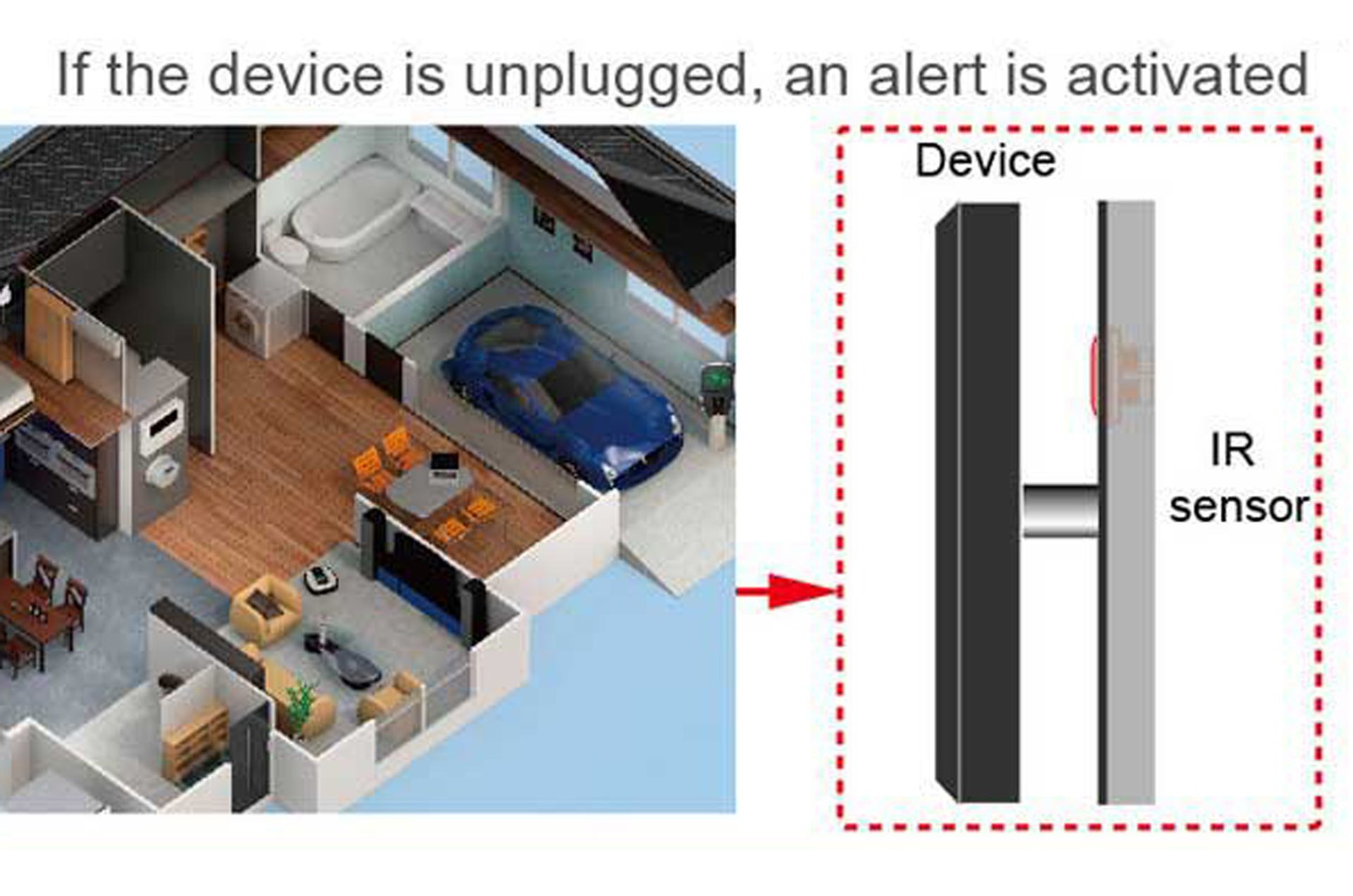

Anti-theft Detection
-
Automatic Location Detection
-

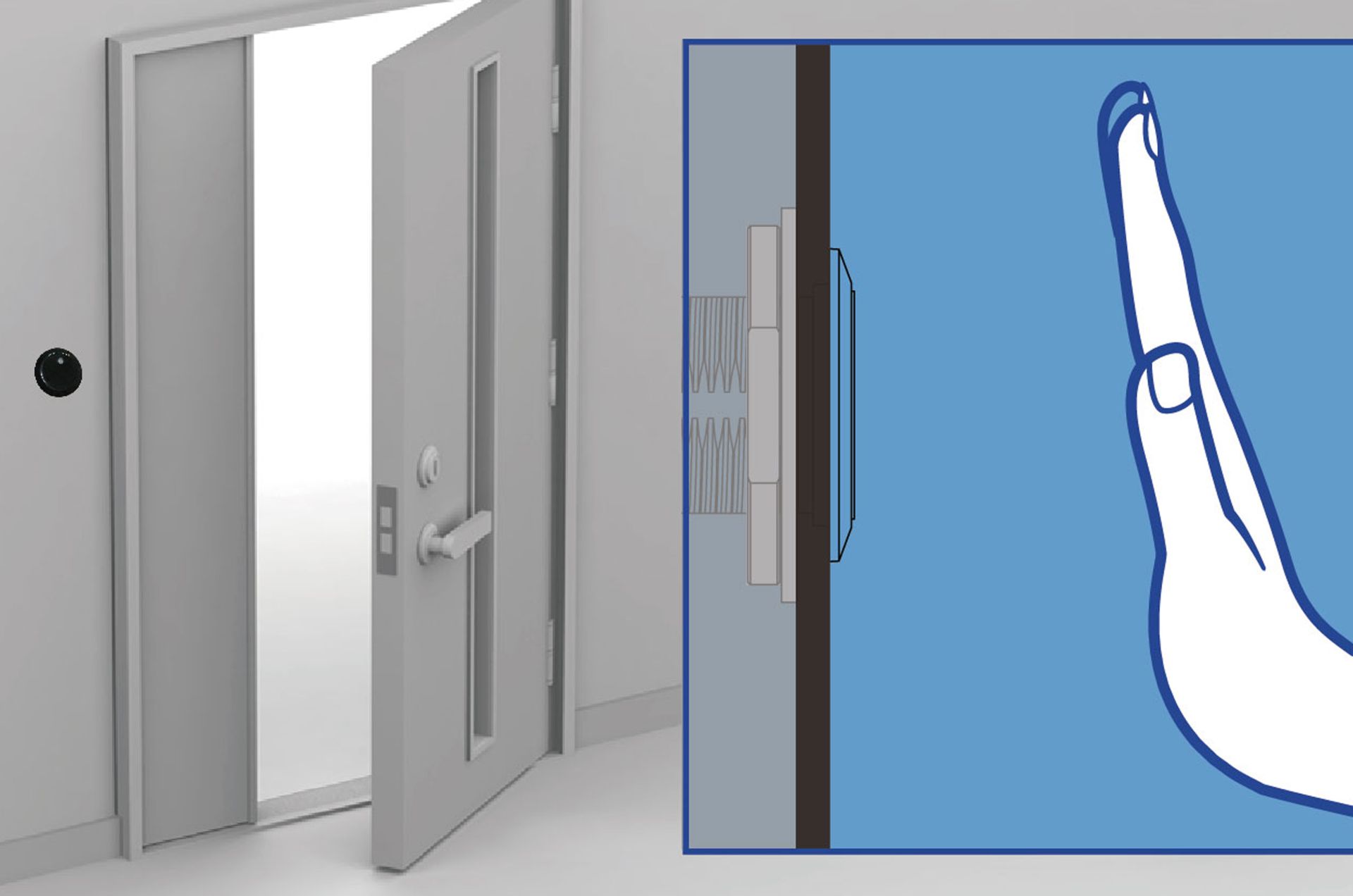

Gate/Door/Exit/Automation Control
Ordering information
| PBT-22IRV | DC10~24V Contactless Infrared Sensor Switch, Adjustable proximity range: 3~15cm |
| PBT-22IRSV | DC10~24V Contactless Infrared Sensor Switch, Adjustable proximity range: 0.5~10cm |
