HF 13.56MHz RFID Read Module
- Support multi-type of cards and protocol :
- With LED indicator.
- Communications: UART(TTL)
- Provide SDK for development.
- With LED indicator
- Support multi-type of cards and protocol: ISO 14443A, ISO 14443B, ISO 15693, ISO 18092, Mifare, Mifare Ultralight, Mifare DESFire, ICODE-2, FeliCa, NFC Tag or compatible
- Communications: UART(TTL)
- Provide SDK for development.
Application field
 |
 |
 |
| Counterfeit Forestalling | Asset Management | Contactless payment system |
 |
 |
 |
| Healthcare | Entertainment Facilities | Access Control /Intercom |
 |
 |
 |
| Automobile instrument control | Logistics & Supply chain | Production control |
 |
 |
 |
| Robotics Navigation | Kiosk / POS system | Rental Equipment Solution |
Dimension: Unit(mm)
 |
 |
| PIHF-19 | PIHF-19-1 |
Ordering information

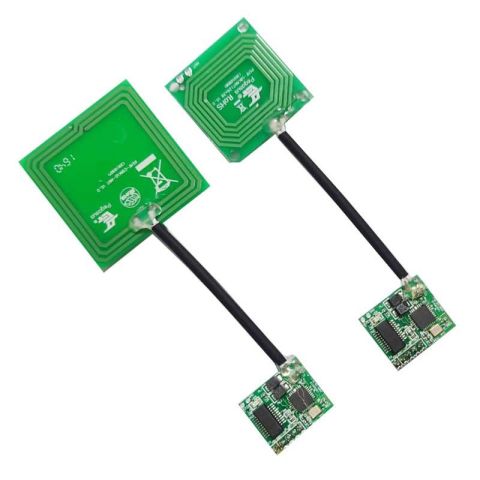

| PIHF-19TH07 | Mini Mifare 13.56MHz UID reading module with antenna(37x37mm), TTL, Card number: in reverse, Hexadecimal |
| PIHF-19TH07-1 | Mini Mifare 13.56MHz UID reading module with antenna(29x29mm), TTL, Card number: in reverse, Hexadecimal |
Mifare DESFire is a registered trademark of NXP B.V.
Mifare Ultralight is a registered trademark of NXP B.V.
FeliCa is a trademark of Sony Corporation.
RELATED PRODUCTS

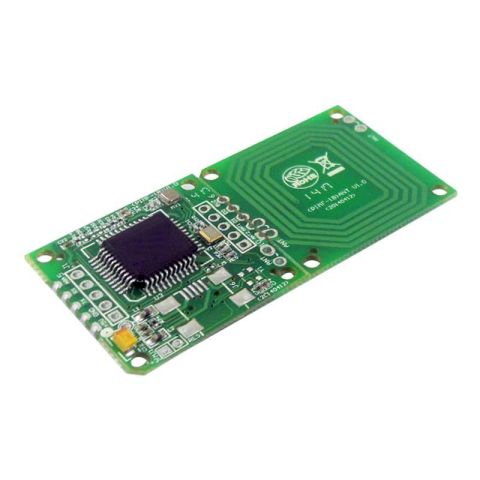

Model：PIMF-18EW34T-LW
