HOME Product Flush-Mount Touchless Infrared Sensor Button

SHARE

Model：PBT-186IRC

Flush-Mount Touchless Infrared Sensor Button

Form C relay output (1A@30VDC)
Adjustable output time 1~15 sec. Trigger / Toggle
Adjustable sensing range 1.5~10cm
Voltage : 10V/24V DC/AC (auto-adjusting)

Compare Inquiry (0)

Certification

Flush-Mount Touchless Infrared Sensor Button

Product
Specification
Download

Product

How to assembly

Mounting box for EU standard

Mounting box for US standard

Dimension: Unit(mm)

Example Applications

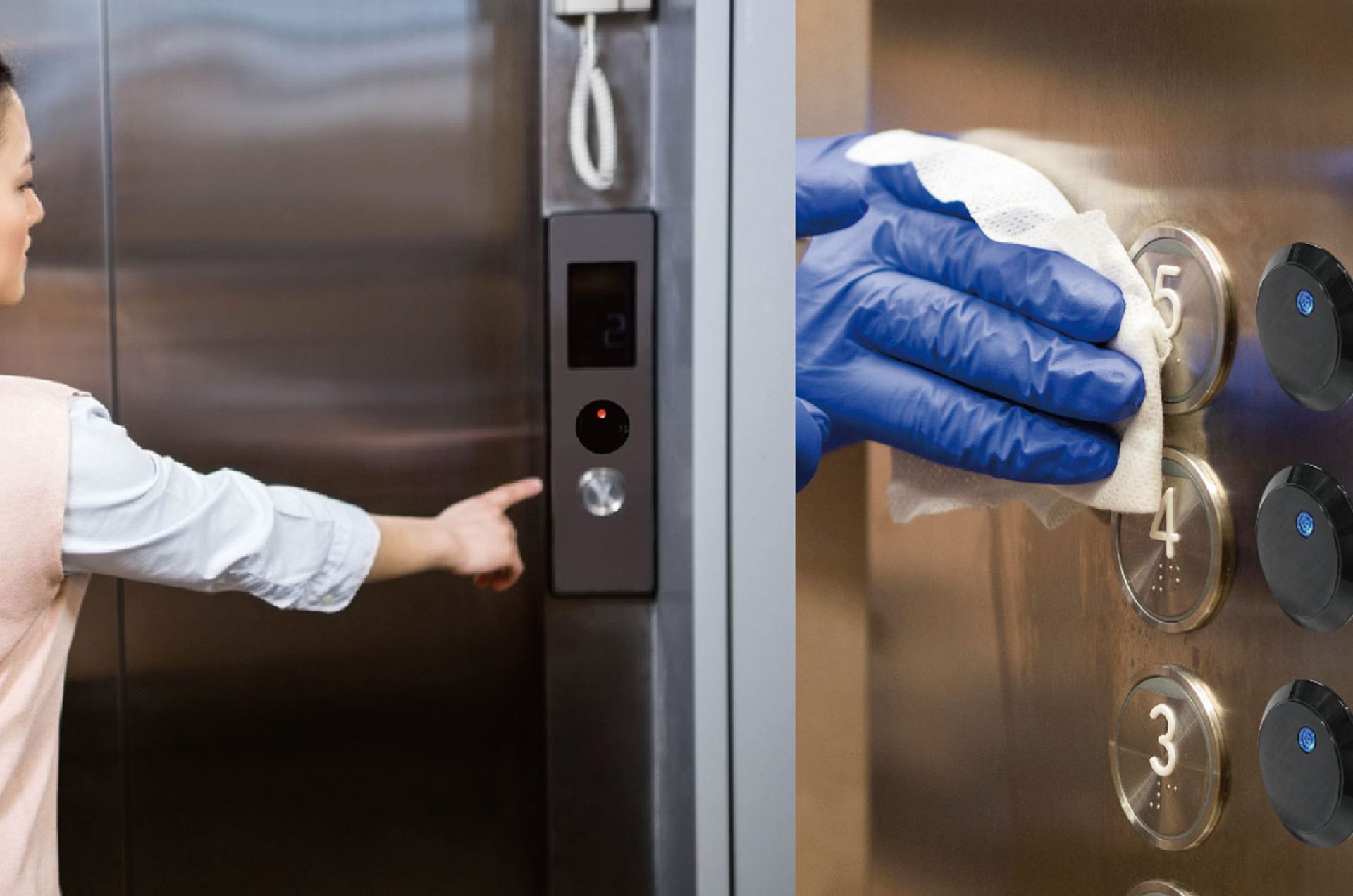

Elevator Buttons

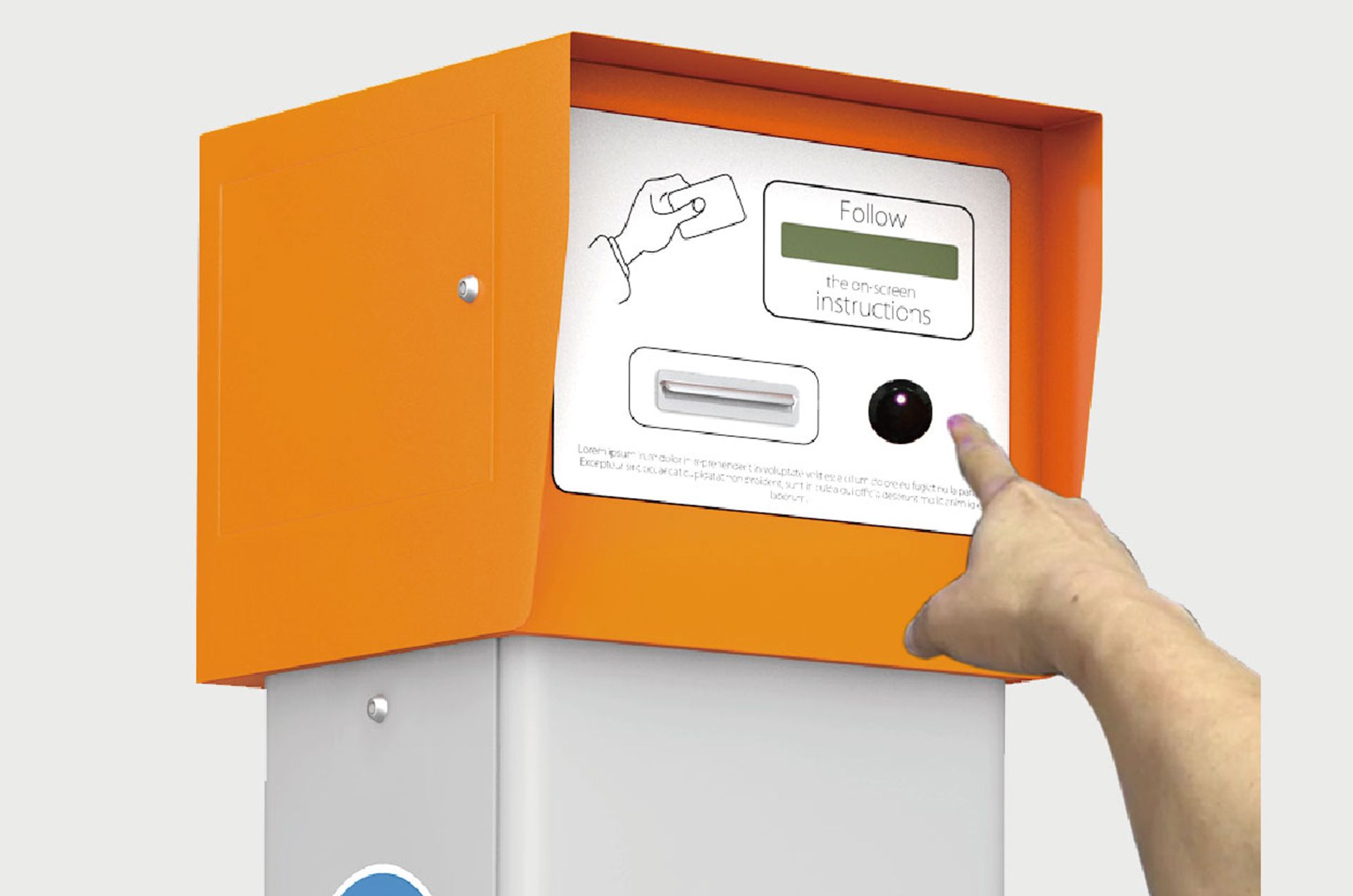

Parking Lot Ticket Machine

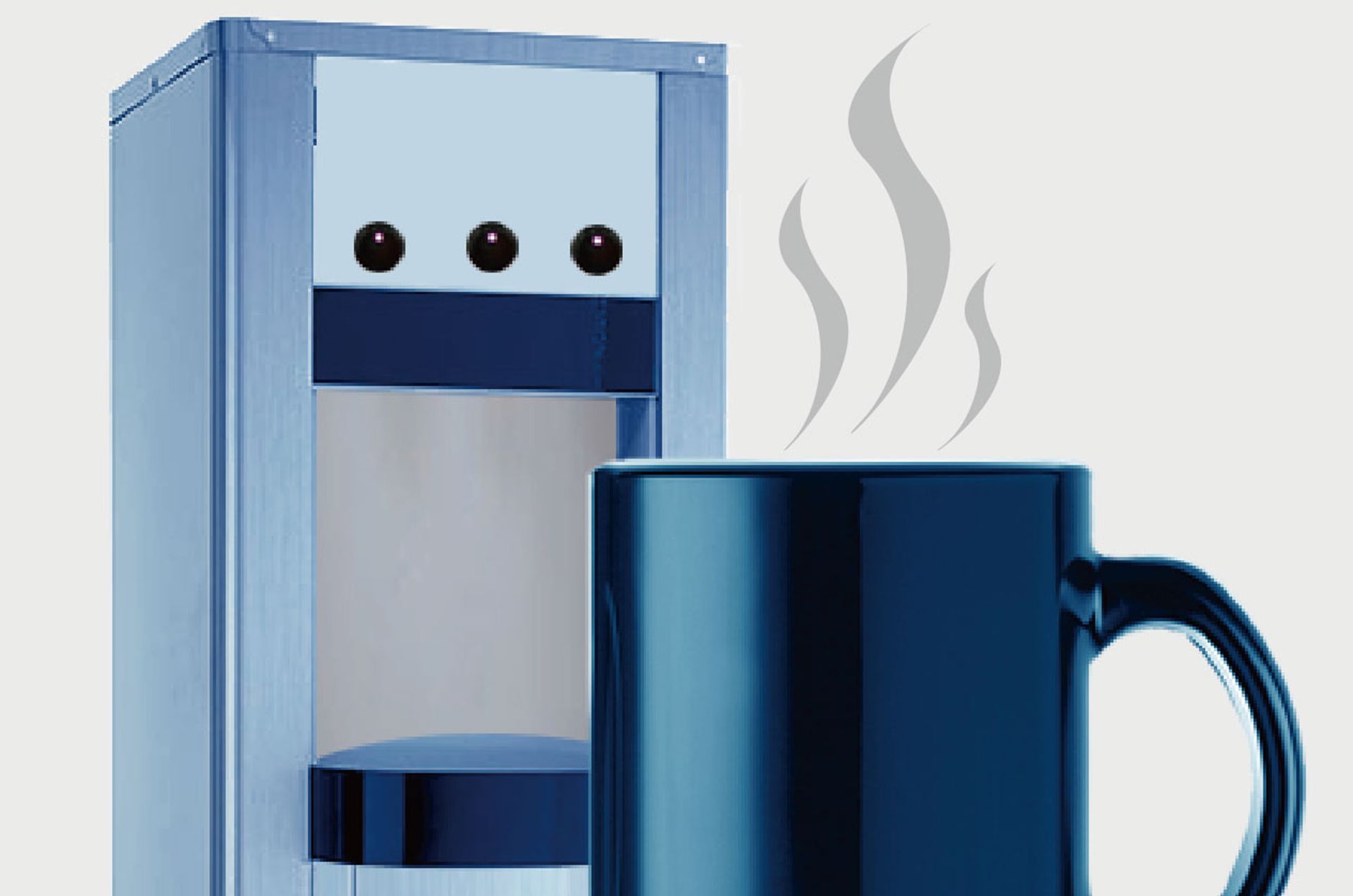

Water Dispensers

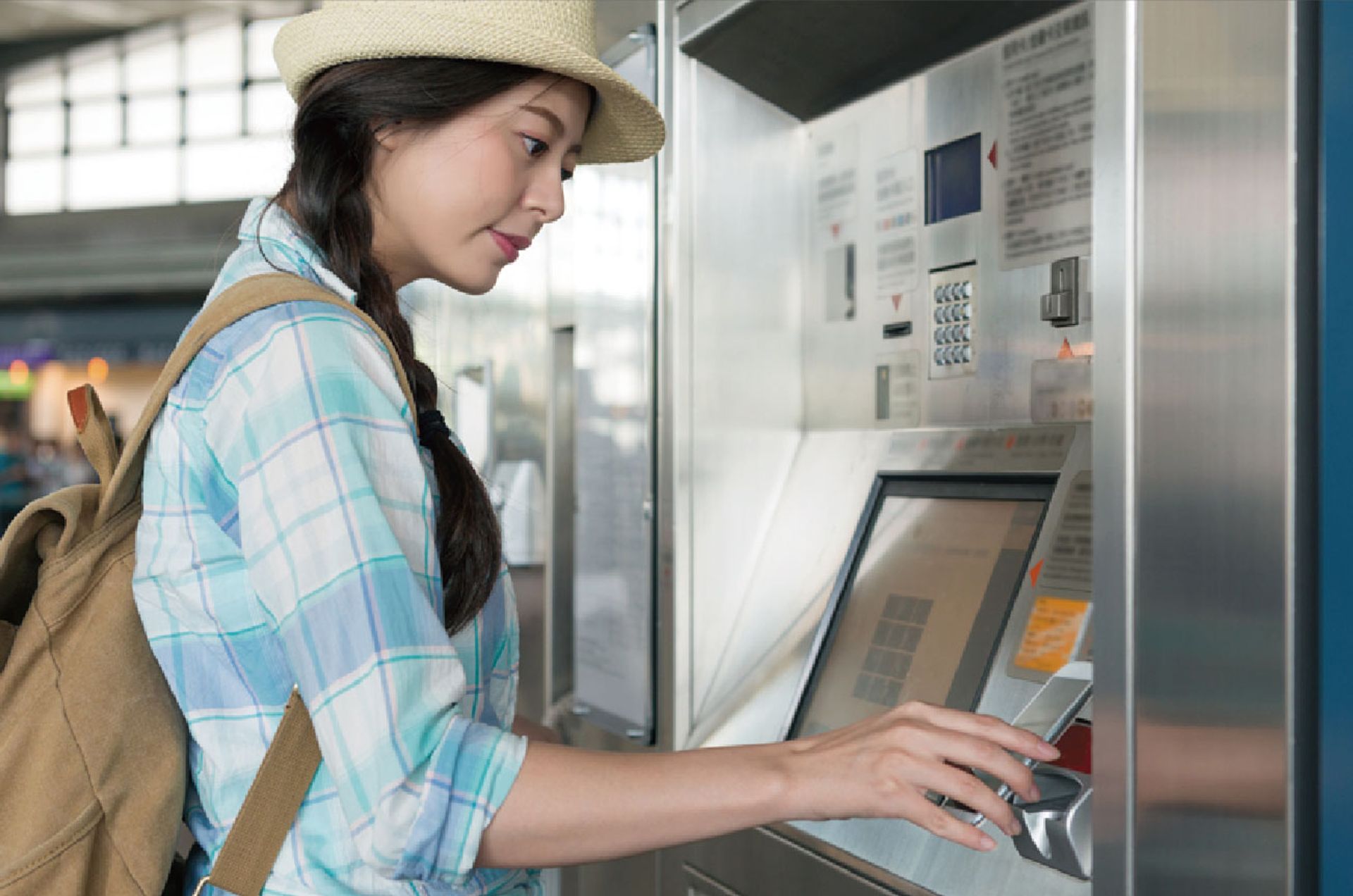

Ticket Machine

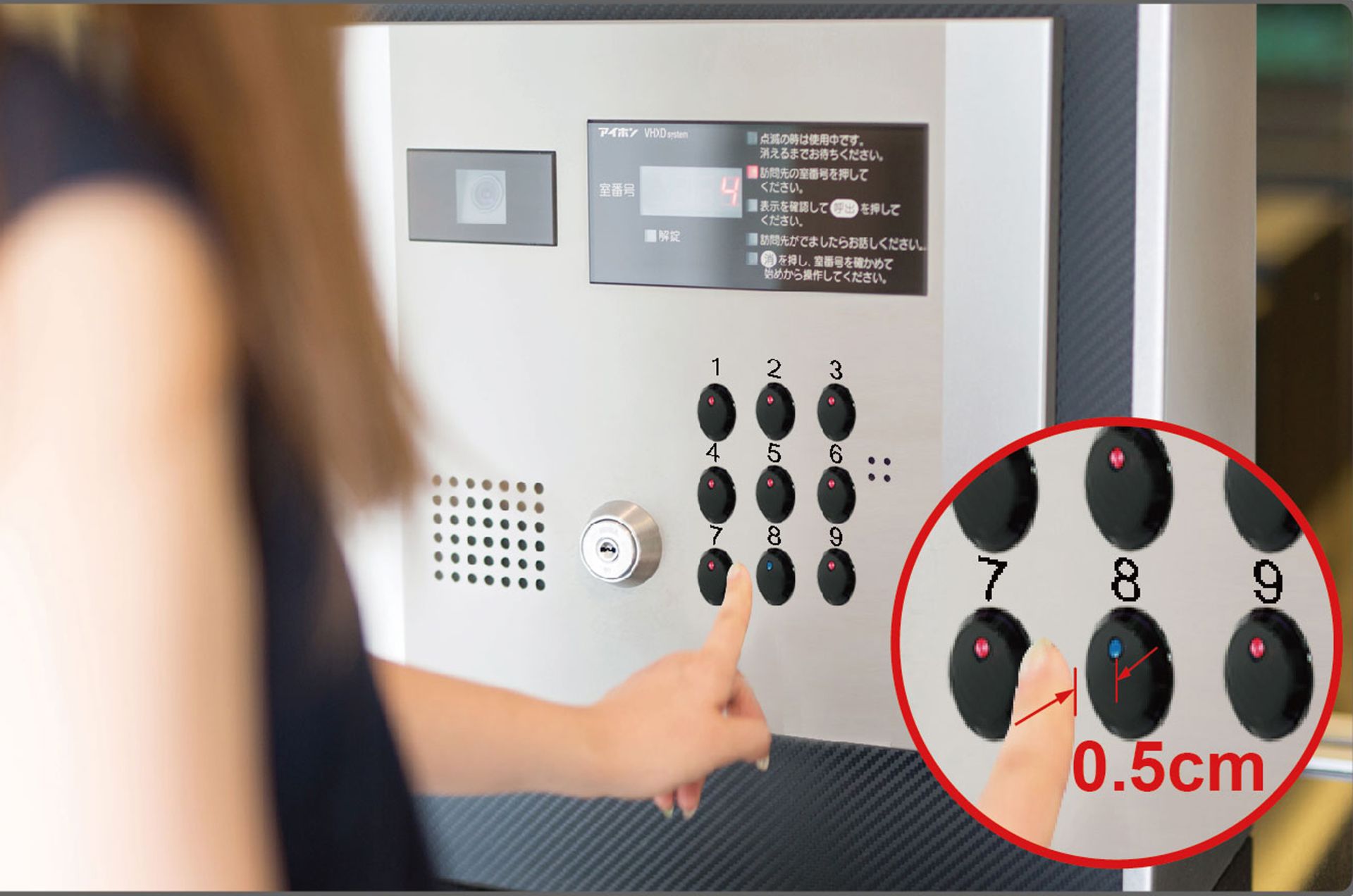

Device Switch

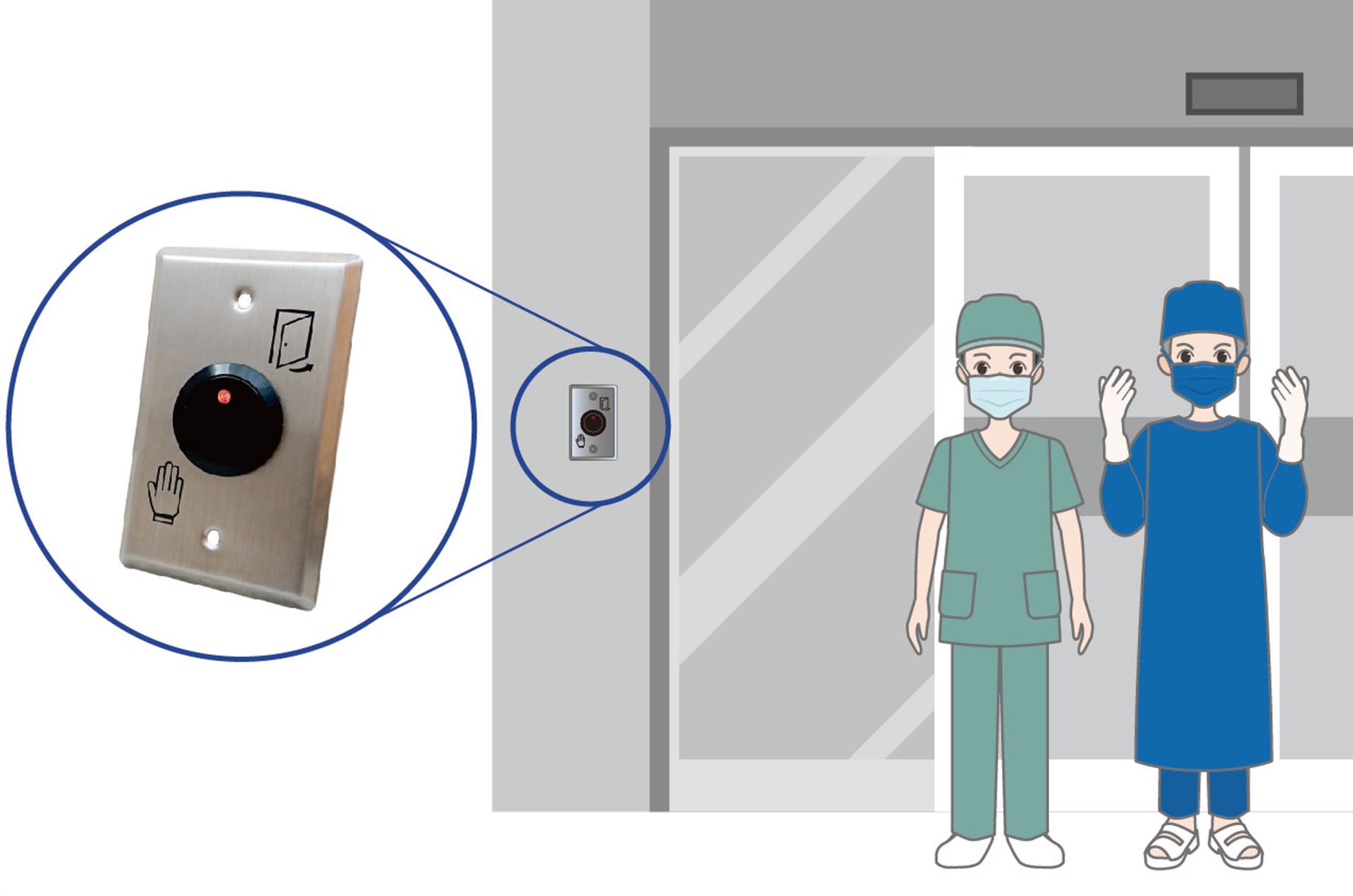

Hospital Door/Operating Room Automation Control

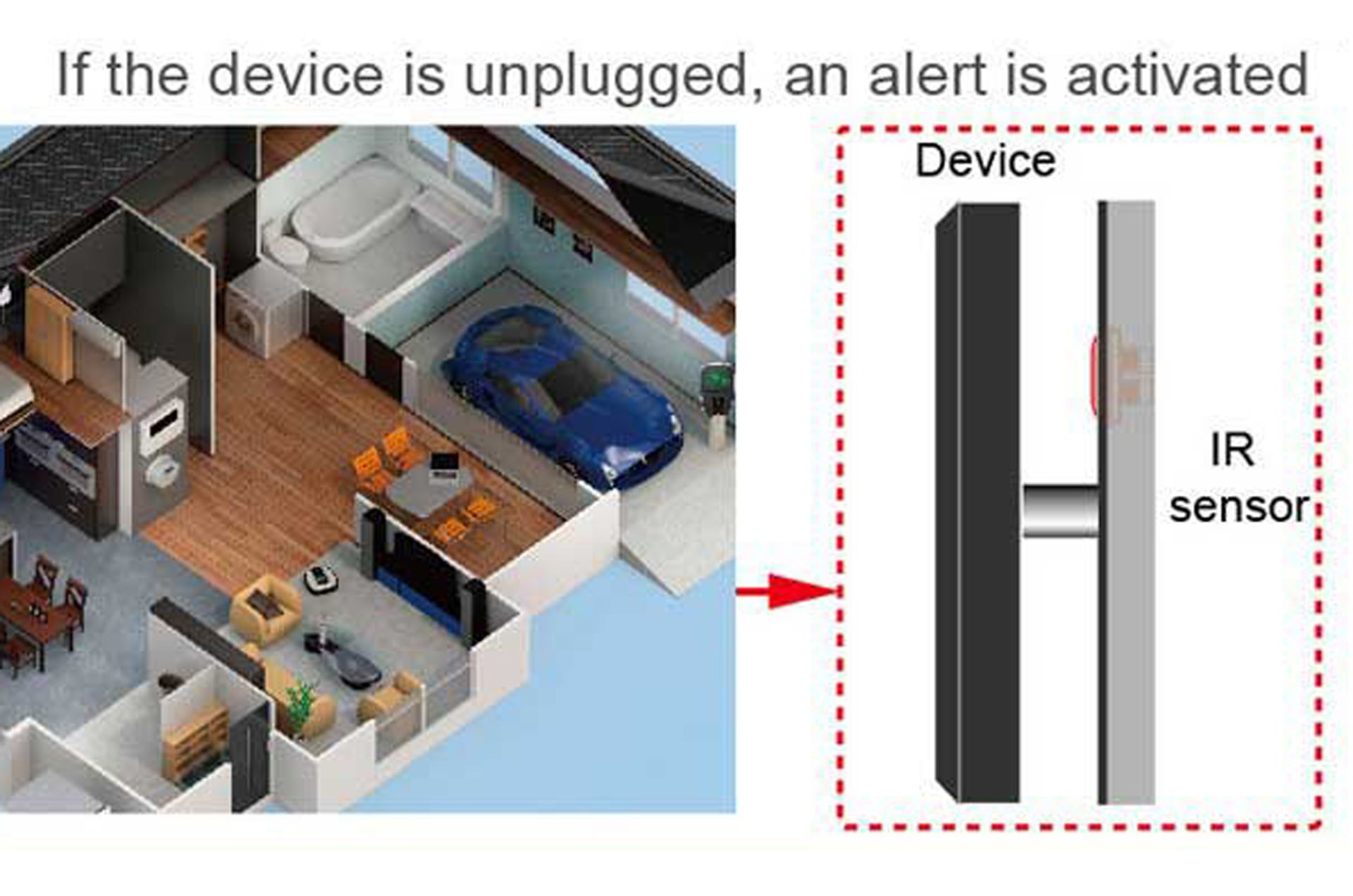

Anti-theft Detection
Automatic Location Detection

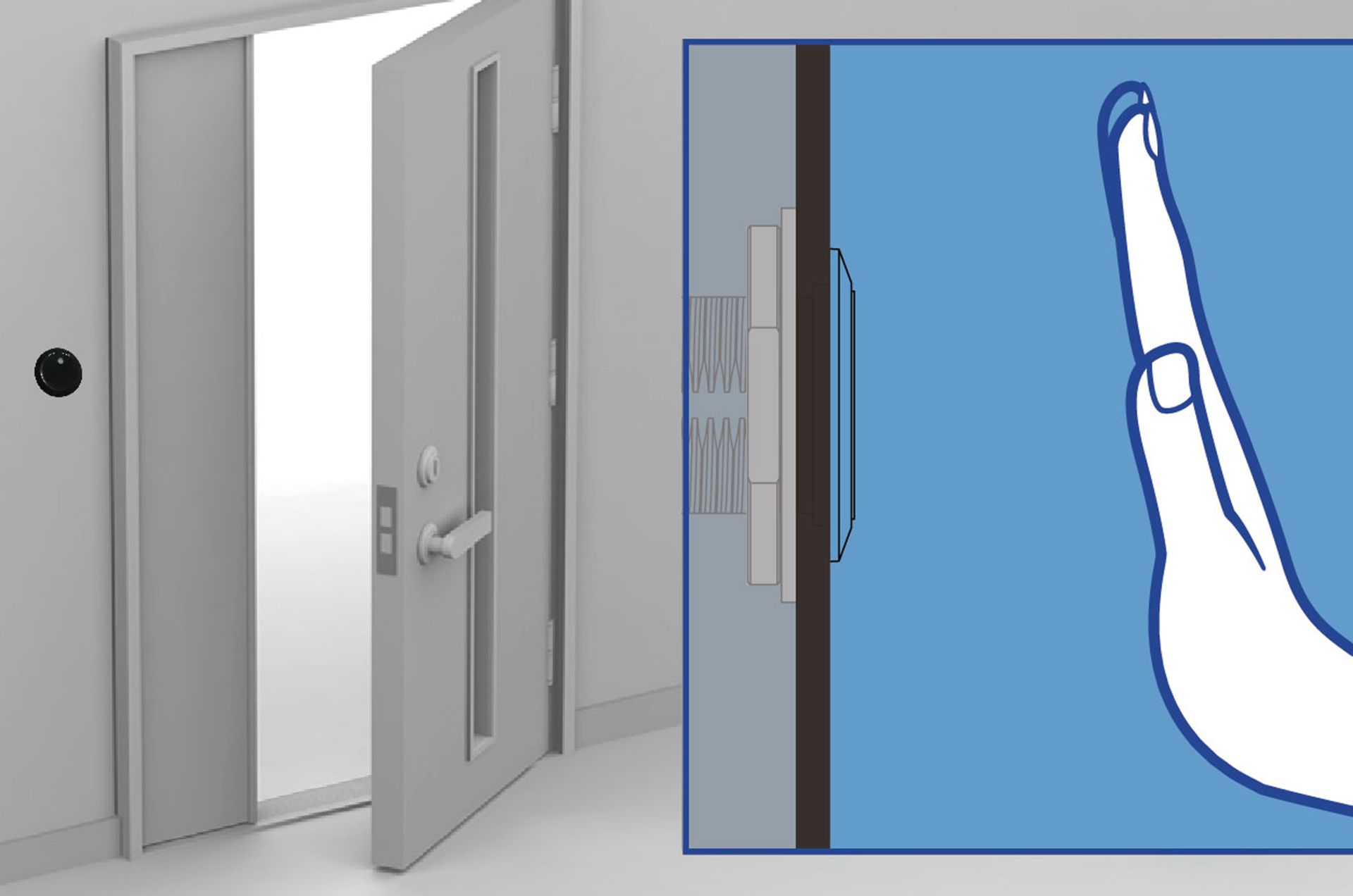

Gate/Door/Exit/Automation Control

Specification

Dimension(mm)

98(L)x86(W)x24.5(D)

Hole distance

83.5mm

Voltage / Current

DC10V (145mA)~24V(65mA) / AC10V(177mA)~24V(110mA)

Relay type

Form C dry contact, N.O./N.C./COM., 1A@30VDC, 0.3A@125VAC

Output time

1~15 sec, Trigger / Toggle

Sensor Range

1.5~10cm

LED Status indicator

Power on: Blue, Proximity: Green

Case material

IR Sensor: UV & Fire Polycarbonate / Face Plate: ABS

IP Rating

---

Operating life

Relay: 100,000 cycles

Download

Selection Guides For Infrared Sensor Switch Series

Download

※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
