Model:DA-66S

Electric Bolt Lock – Fail Safe (Ultra Narrow)

  • Ultra Thin & Narrow innovative design, Smart / Simple / Elegant
  • Door position status monitor output contact
  • Adjustable door lock delay timer
  • For emergency door, glass door and frameless glass door. Wooden door
compare Compare Inquiry (0)
Certification
Product

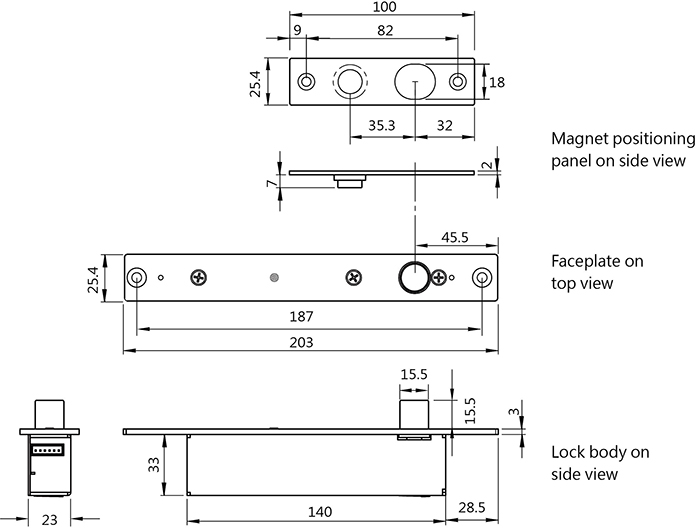

Dimension: Unit(mm)




Ordering information

DA-66S Fail safe type Flush Mounted Electric Drop Bolt, Door Release Time(4, 5, 10sec.)
DA-66S-I Fail safe type Flush Mounted Electric Drop Bolt, Lock immediately


Specification
Type
Fail Safe
Voltage / Current
DC12V(Standby:120mA, Working:1000mA)
Time Delay
10 Sec. / 5 Sec. / 4 Sec.
Door position sensor
YES
LED indicator
YES
Dimension (LxWxD)mm-Faceplate
203x25.4x3
Dimension (LxWxD)mm-Lock
140x23x33
Net Weight (g)
570g±1%
Bracket
---
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
