Electric Bolt Lock – Fail Safe
Versatile Door Compatibility: Can be installed on iron doors, aluminum doors, glass doors, and wooden doors.
Reed Switch Alignment Insert Design: Ensures secure locking while offering energy-saving standby and anti-overheating functions.
Convenient Unlocking Function: Equipped with a dry contact that can be connected to a door button for easy unlocking.
Adjustable Door Closing Delay: Features a rotary switch allowing selection of 3, 4, 7, or 8-second delay options.
180-Degree Door Opening Design: A built-in bolt permits free door opening up to 180 degrees.
Power Indicator & Monitoring Points: Provides a highly readable display and monitoring capability to enhance operational status recognition.
Smart Access Control, Enhanced Security – DA-64A/D Electric Bolt Lock
The DA-64A/D is a smart electric bolt lock designed for various door types including iron, aluminum, glass, and wood. It features a fail-safe mechanism that releases the lock when power is cut, ensuring immediate door opening during emergencies to meet high safety standards. With an integrated door position detection output for real-time monitoring and an adjustable delay for locking, it offers users flexible control over access timings. The reed switch alignment insert design not only ensures secure locking but also provides energy-saving and anti-overheating benefits, making it ideal for long-term operation.
Applications of DA-64A/D
● Iron/Aluminum Doors: Ensures immediate door opening in the event of a power outage or emergency.
● Glass Doors: Suitable for offices and commercial buildings, combining safety with aesthetic appeal.
● Wooden Doors: Ideal for residential installations, schools, and conference rooms, meeting everyday access control needs.
DA-64A/D Technical Features and Advantages
● Smart Door Position Detection: Integrated output signal monitors the lock status in real time.
● Adjustable Post-Opening Delay: Offers flexible delay options of 3, 4, 7, or 8 seconds.
● 180-Degree Opening Support: The built-in bolt enables free door opening up to 180 degrees.
● Convenient Unlocking Functionality: Supports both remote and local unlocking control for enhanced flexibility.
● Power Indicator and Monitoring: Provides real-time monitoring of operational status to strengthen safety management.
Dimension
Unit: mm

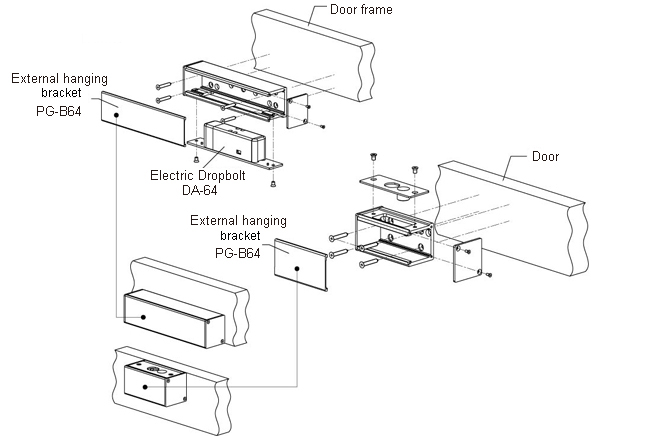

External hanging bracket
PG-B64
For glass door without frame
External hanging bracket (PG-B64) + Glass jig (PG-DASTC-2)
When selecting DA-64A/D, consider the following:
● Emergency Access Needs: Ensure that the lock’s fail-safe mechanism meets your requirement for immediate door opening during power outages or emergencies.
● Door Type Compatibility: Verify that the lock is suitable for the specific door material (iron, aluminum, glass, or wood) where it will be installed.
● Locking Delay Requirements: Determine if an adjustable delay for door locking is necessary to enhance access control flexibility.
Frequently Asked Questions (FAQ)
● What locations are suitable for the DA-64A/D installation?
It is widely applicable in both commercial and residential settings, including installations on iron, aluminum, glass, and wooden doors.
● How is the DA-64A/D installed?
The lock comes with an installation drilling template that marks the mounting hole positions, ensuring proper alignment for smooth locking and unlocking.
● What delay options are available for door locking?
The delay can be adjusted to 3, 4, 7, or 8 seconds to accommodate various operational scenarios.
Ordering information
| DA-64A/D | Fail safe type electric deadbolt, DC11V~16V |
| A-64AD2 | Fail safe type electric deadbolt, DC11V~16V, with COM. & N.O. & N.C. & Door monitor |
The DA-64A/D can be integrated with access control systems to provide an efficient and secure solution for various door types and environments. For pricing details or purchasing advice, please contact Pongee for further information.
If you are interested in detailed specifications, pricing, or purchasing information for the DA-64A/D, please contact Pegasus:
● Phone: +886-2-8228-0198
● Email: pongee@pegasus.com.tw
● Address: 5F., No.738, Chung-Cheng Rd., Chung-Ho District, New Taipei City 235603, Taiwan
The professional team at Pegasus will provide you with comprehensive product information and quotes, assisting you in selecting the best smart fail-safe electric bolt lock solution!
