Model:PML-4100 / PML-4101

1200LBs, 540KGs Magnetic Lock (Double Door)

  • Holding force: 1200LBs (540KGs)
  • Voltage : 12V/24VDC (Selectable)
  • Optional bracket available to install

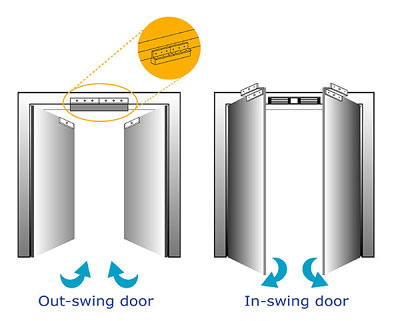

  • Suitable for double security door (IN & Out Swing)
compare Compare Inquiry (0)
Certification
Product


Dimension: Unit: mm



Accessories

L type fixed bracket - PG-BLO210A x 2pcs

L & Z fixed bracket - PG-BLZ210A x 2pcs



Specification
Holding Force
1200LBs x 2 (540KGs x 2)
Voltage / Current
DC 12V(1000mA) / DC 24V(500mA)
LED indicator
PML-4100(Power LED) / PML-4101(Power & Status LED)
Timer
PML-4100(NO) / PML-4101(YES)
Relay dry contact rating
PML-4100(NO) / PML-4101(DC 24V/1A, AC 125V/500mA)
Material-Magnet
Aluminum
Material-Armature plate
Steel
Dimension (LxWxD)mm-Magnet
532x73x40
Dimensions(LxWxD)mm-Armature plate
185x61x16
Unit Weight (KG)
10kgs±1%
Ingress Protection(IP)
---
Bracket Type - L Bracket
PG-BLO210A x 2pcs
Bracket Type - L&Z Bracket
PG-BLZ210A x 2pcs
Bracket Type - U Bracket
---
Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
