HOME Product 800LBs, 360KGs Waterproof Electromagnetic Lock(Side Mount)
SHARE
Model：PGL-401

800LBs, 360KGs Waterproof Electromagnetic Lock(Side Mount)

  • Holding force: 800LBs (360KGs)
  • Voltage : 12V/24VDC (Selectable)
  • Optional bracket available to install
  • Suitable for security door (IN & Out Swing)
  • Waterproof IP rate for outdoor installation
compare Compare Inquiry (0)
Certification
800LBs, 360KGs Waterproof Electromagnetic Lock(Side Mount)
800LBs, 360KGs Waterproof Electromagnetic Lock(Side Mount)
Product


Dimension: Unit: mm



Accessories

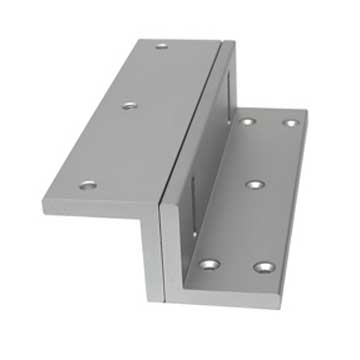

Z fixed bracket (For In-Swing Door) - PG-BOZ110A



Specification
Holding Force
800LBs (360KGs)
Voltage / Current
DC 12V(420mA) / DC 24V(210mA)
Door monitoring
YES
LED indicator
---
Timer
---
Relay dry contact rating
---
Material-Magnet
Stainless steel
Material-Armature plate
Steel
Dimension (LxWxD)mm-Magnet
223x47x29
Dimensions(LxWxD)mm-Armature plate
185x47x13
Unit Weight (KG)
3kgs±1%
Ingress Protection(IP)
YES
Bracket Type - L Bracket
---
Bracket Type - L&Z Bracket
Z Bracket: PG-BOZ110A
Bracket Type - U Bracket
---
Download

Electromagnetic Lock(Waterproof) Catalog

Download

Selection Guides For Electromagnetic Lock

Download
※ The specifications listed are subject to change by the company. If they differ from the actual product, the actual product shall prevail.
