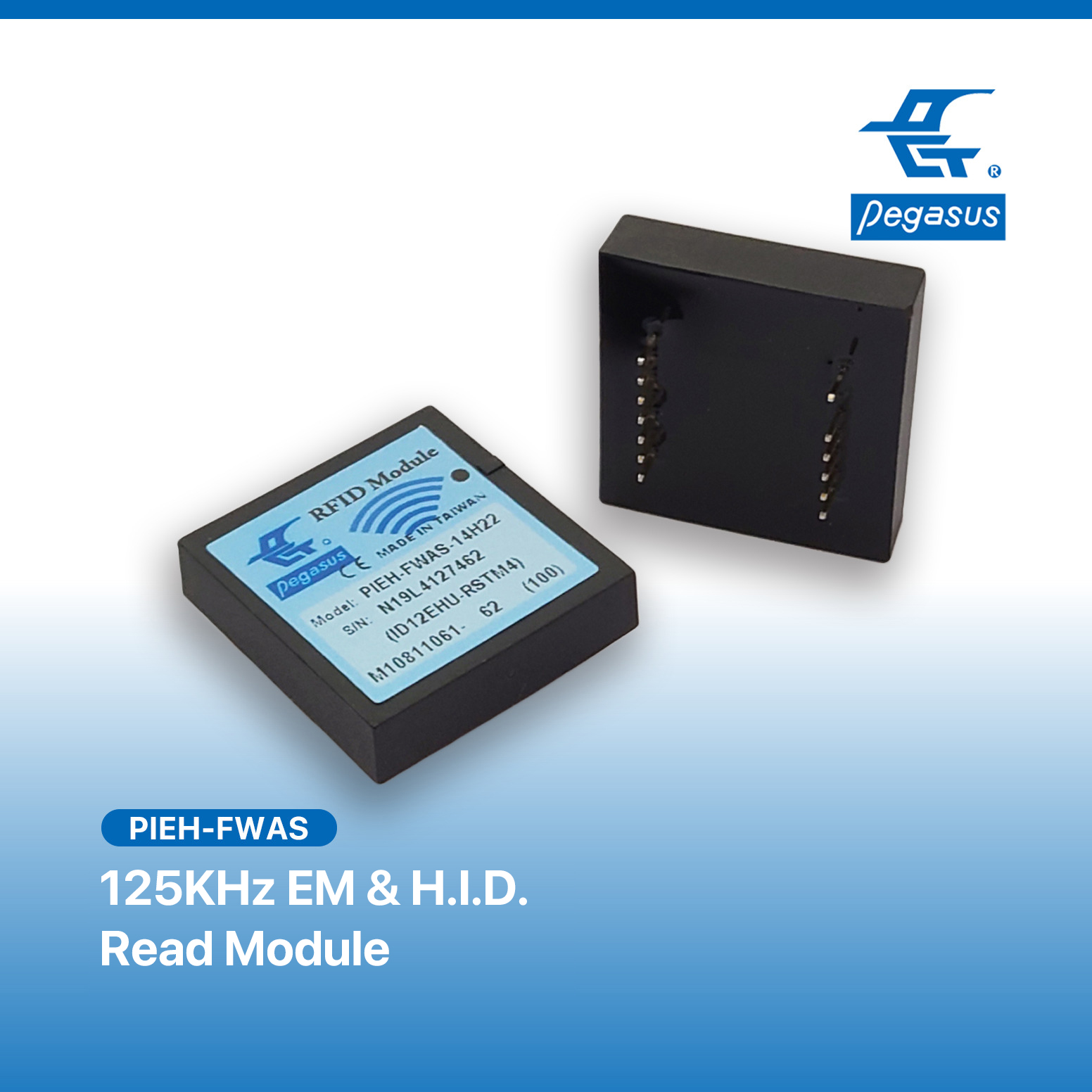

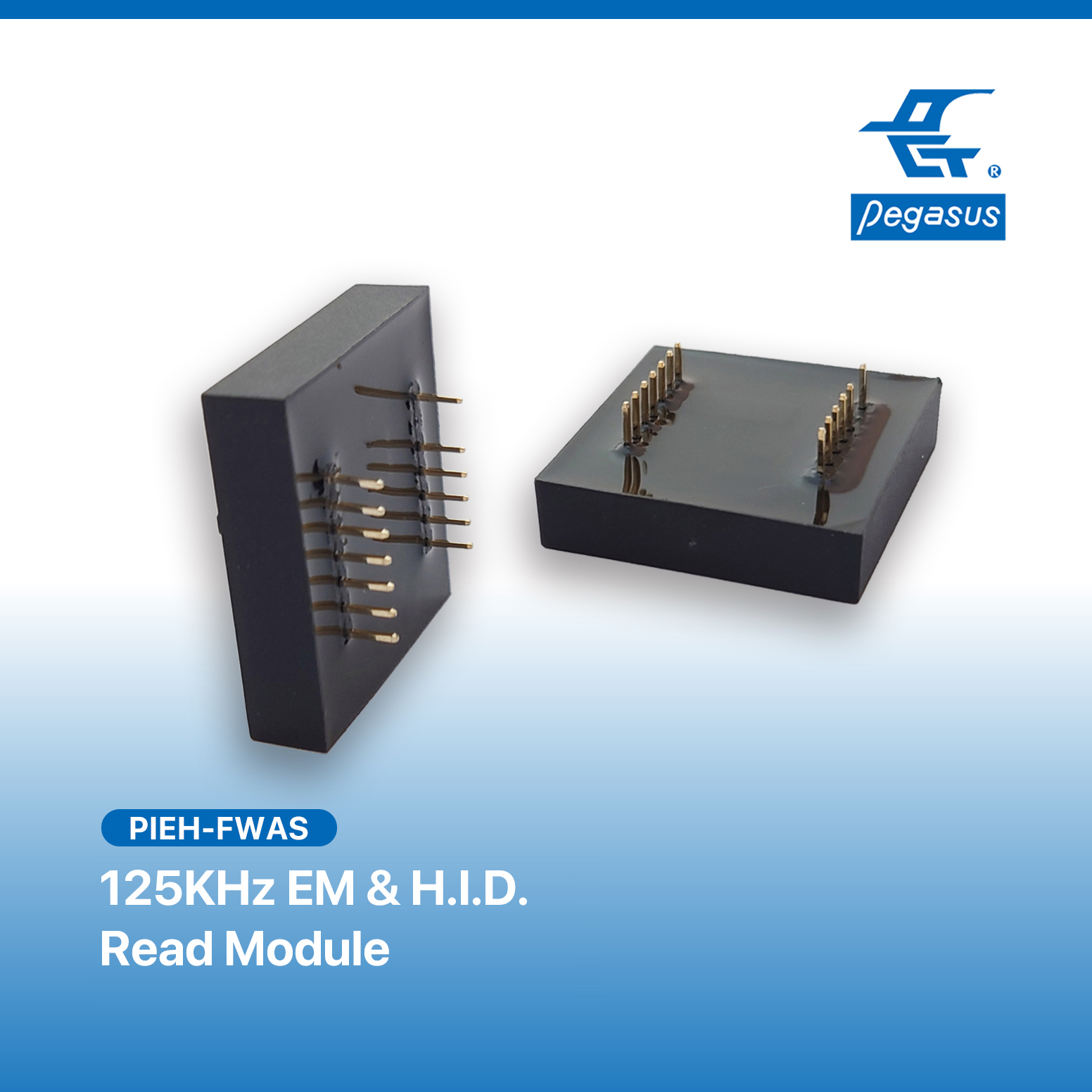

125KHz RFID EM & H.I.D. Read Module

PIEH-FWAS-14H22: The Prime Choice for Multi-Application RFID Solutions
The PIEH-FWAS-14H22 is a high-performance 125KHz ASK/FSK dual-decoding RFID reader module, supporting various card protocols including EM series, H.I.D., and TEMIC 5567. With options for Wiegand, UART, and ABA communication interfaces, it is the ideal choice for access control, membership identification, and mobile device integration.

Extensive Applications of the PIEH-FWAS-14H22 RFID Reader Module
With its robust dual-decoding capabilities and support for both internal and external antenna configurations, the PIEH-FWAS-14H22 is well-suited for a range of applications:


• Access Control Systems: This module enables fast verification of access cards, supporting both Wiegand and ABA communication formats to meet diverse access control needs.



• Biometric Integration: Can be embedded in biometric systems for identification and access control, enhancing security.



• Mobile and Handheld Device Applications: Suitable for embedding in mobile devices for RFID scanning and data transmission, enhancing compatibility and flexibility in mobile applications.



• Contactless Payment and Membership Management: Ideal for RFID-based payments and membership card identification, suitable for member access control and other management scenarios.



• Outdoor and Weather-Resistant Applications: Encased in epoxy resin, this module is waterproof and weather-resistant, making it ideal for outdoor equipment integration.

Technical Specifications and Advantages of the PIEH-FWAS-14H22
The PIEH-FWAS-14H22 is engineered to meet the requirements of most RFID systems, offering these technical advantages:


• Frequency Support: Uses 125KHz ASK/FSK dual-decoding technology to support a range of card types.



• Multi-Protocol Compatibility: Supports ISO18000-2 protocols and is compatible with EM, TEMIC, and H.I.D. card types for wide-ranging applications.



• Internal or External Antenna Options: Flexible configuration options for internal or external antennas allow users to choose the best setup for their application.



• Waterproof and Weather-Resistant Design: Encased in epoxy resin for durability and reliability in harsh environments.

Versatile Communication Interfaces: Supports Wiegand, UART, and ABA formats for seamless integration with various devices.


• Developer-Friendly: Provides a complete suite of development tools and SDK to streamline the development process, making it suitable for rapid prototyping and system integration.

How to Choose an RFID Module: Application Guide for the PIEH-FWAS-14H22
The PIEH-FWAS-14H22 offers excellent dual-decoding technology, extensive protocol support, and versatile communication format options, making it suitable for various RFID applications. From access control and mobile device integration to specialized identification systems, this module is easily integrated. With flexible internal and external antenna options, the PIEH-FWAS-14H22 provides optimal support for diverse scenarios, meeting a variety of system design requirements.

Frequently Asked Questions (FAQ)

• Which card protocols does the PIEH-FWAS-14H22 support?

This module supports EM4001, 4100, 4102, TEMIC 5567, and H.I.D. cards under the ISO18000-2 standard.


• What applications are suitable for the PIEH-FWAS-14H22?

This module is suitable for access control, biometric system integration, mobile device compatibility, and outdoor, contactless payment, and membership management scenarios.


• How is the PIEH-FWAS-14H22 installed?

Designed for easy installation, this module supports various communication interfaces for seamless integration with a wide range of RFID systems.

Pricing and Purchasing Information
The PIEH-FWAS-14H22 is a high-performance RFID reader module suitable for a wide range of applications and competitively priced. Whether you are seeking solutions for access control, membership management, or mobile device integration, the PIEH-FWAS-14H22 offers reliable performance and flexible applications, making it an ideal choice.
