Prepaid Access Control System
Prepaid Access Control System
System configuration
- This system is designed to pay usage fees by contactless prepaid smartcard.
- Supporting on-line or standalone operation.
- The card dispensing software defines and stores the ID number, building number, expiry date, prepaid amount and accessible floors into the card.
- Supports customized for billing. Ex. Pay-per-use, hour, daily...etc.
- Supports user card enrollment from controller operation or software upload.
- Prepaid card is locked with specific key to increase security of data.
- For easy different project management, the key can be specified according to request.

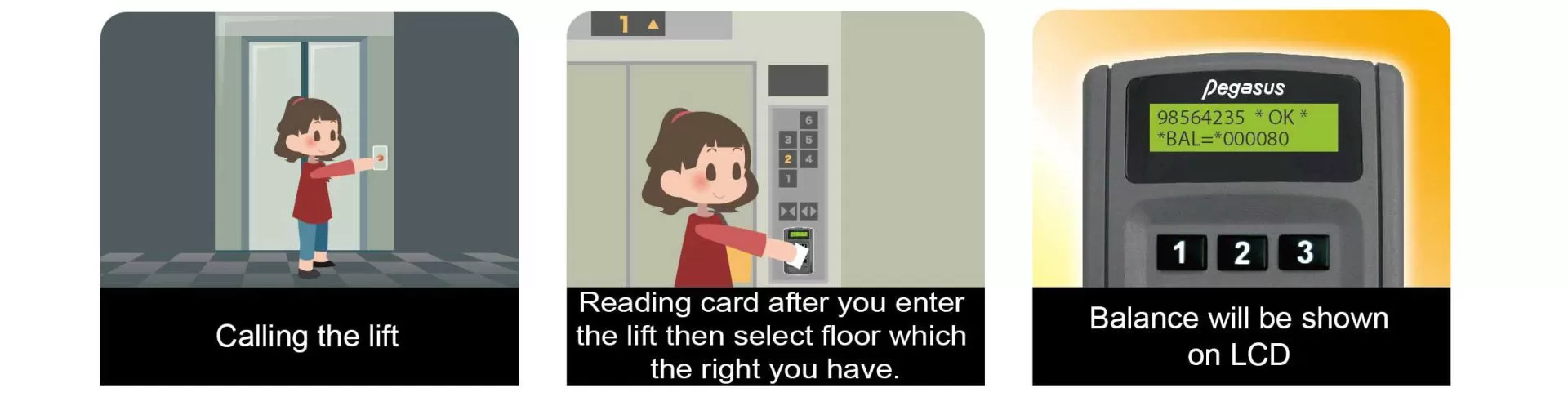

For example 1: Elevator payment system (Pay-per-use), supports access control for maximum 40 floors.

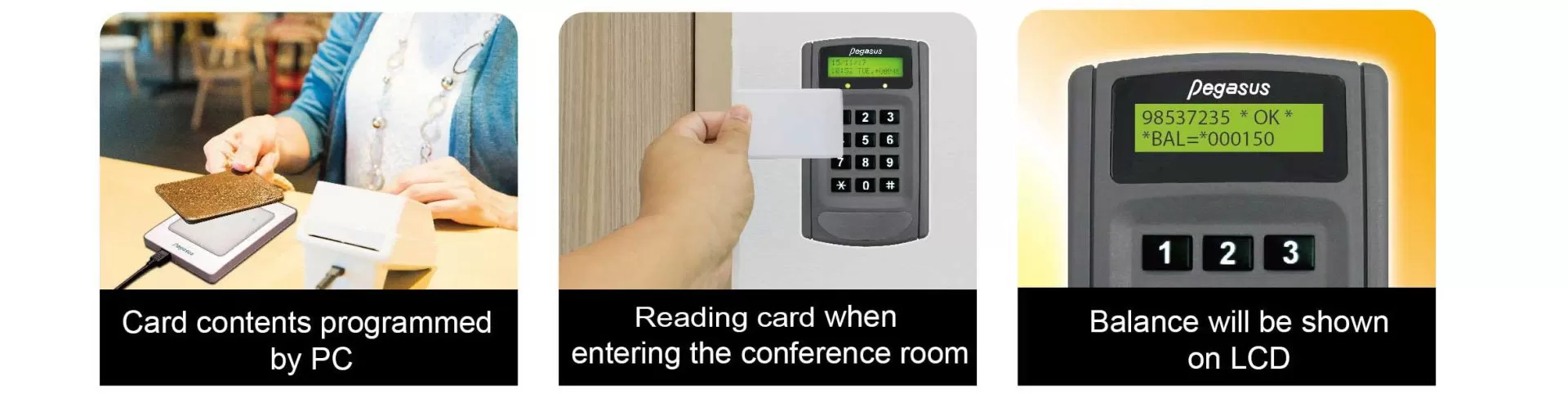

For example 2: Conference room payment system(Pay-per-daily)

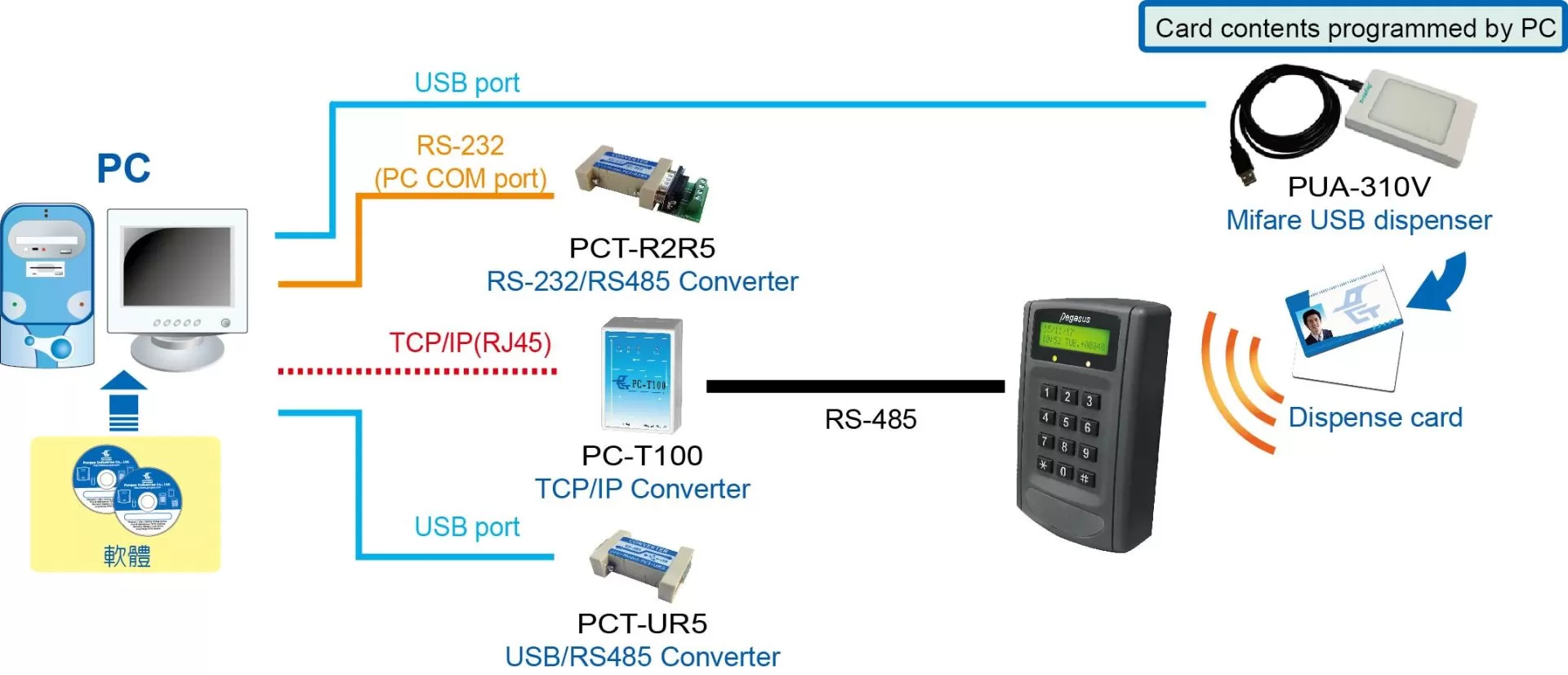

System configuration
Ordering information
| Product | PP-6750VX/M1R5-ARC Prepaid Access Controller(Pay-per-daily) |
PP-6750VX/M1R5-FLV Prepaid Access Controller(Pay-per-use) |
| Appearance |  |
|
| Product | PUA-310V-0M2R2Y4 Mifare dispenser(RS-232 interface) |
PUA-310V-0M2U2Y4 Mifare dispenser(USB interface) |
| Appearance |  |
 |
| Product | PCT-R2R5 RS-232/RS485 Converter |
PC-T100H TCP/IP Converter |
PCT-UR5 USB/RS485 Converter |
| Appearance |  |
 |
 |
| Product | PSA-ADV-E-MRV Prepaid value system software |
PSA-ADV-E-FLV
Elevator payment system software
|
| Appearance |  |
|
