Elevator Control System

System Description

This lift access control system is designed for control the floor access and permitting the use of elevator only by authorized cardholder. Through the registration of card, the cardholder only allows to access the specific floors even in specific time zone that enhance security of building. Besides, this system records each access that could be applied for e-payment.

System Feature

Either lift access controller or external card reader supplies card reading.
Available card: Proximity card (125KHz ID card or13.56MHz IC card).
Supports 8/24/48/64/96 floors lift access control.(Also could be used in management system for locker or mail box)
Supplies add, delete, check card number by block mode and floor setting.
Excellent multiple operation modes: Card only, Card + PIN, Card Number+PIN, Fingerprint, ID+Fingerprint
With 8 time zones and set multiple operation modes depend on every time zone situation.
On/Off-line connection with PC by RS-232 / RS-485 / TCP/IP interface.
Support: Setting by standalone controller keypad or software form PC.
Operation: Present the authorized card and then press floor button.
Built-in anti-tamper switch sends the signal when the controller is destroyed.
With watchdog functions.
Use low CMOS microcomputer, the data can be kept for 10 years while shutting down the power.
Lift access control can be worked with time zone setting.
With relay box and mini electromagnetic lock(ex. PML-080, PCL-100) can used for locker or mail box management.

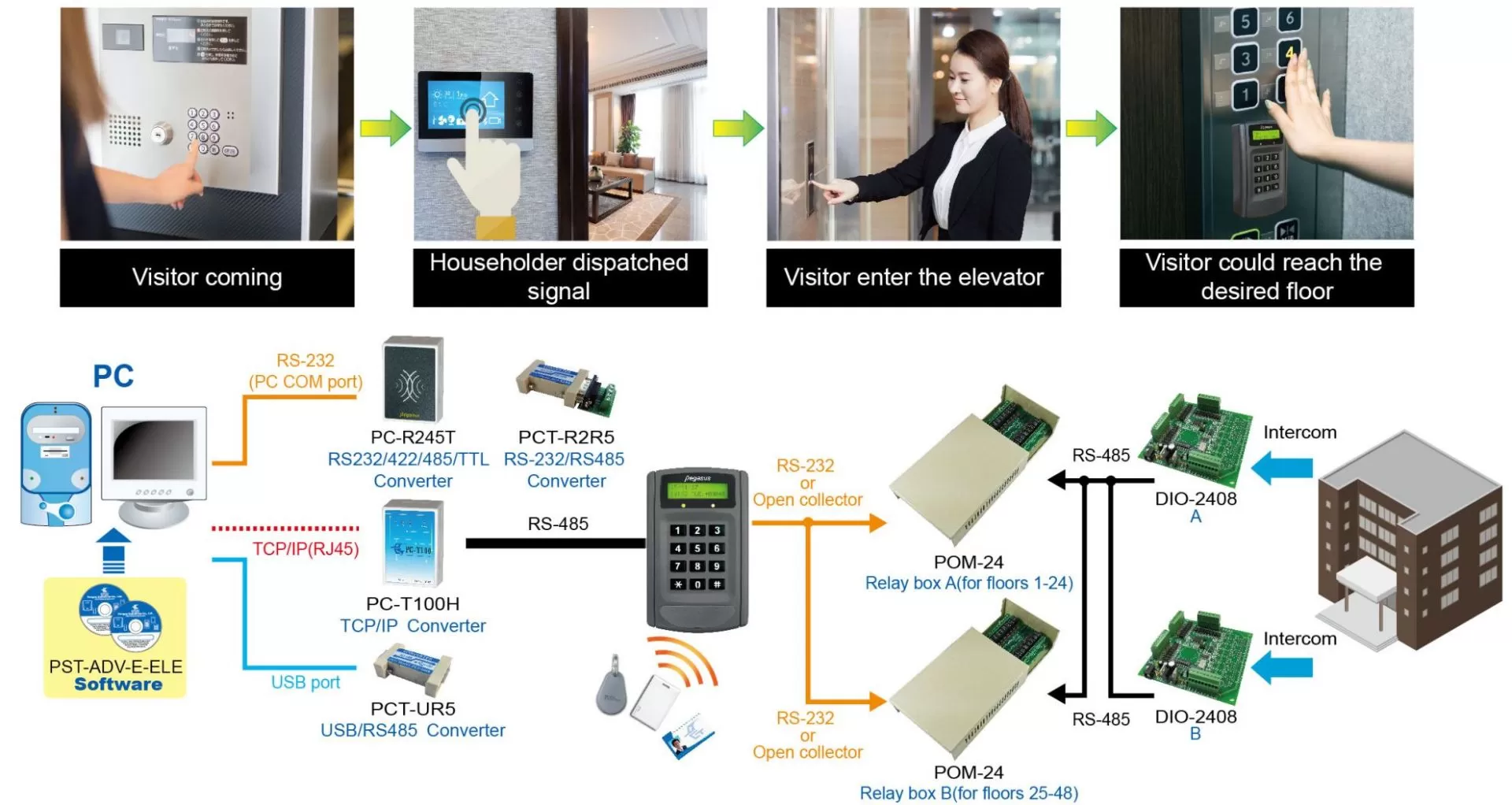

Elevator Access Controller Link With Intercom
To authorize the visitor’s access to elevator directly at home.

System introduction:
DIO-2408 is designed to work with 24-floor Elevator controller. It allow householder to press one button at home when visitor calls by door phone at front door to assign available floor for his/her visitors, so that the visitor could reach the desired floor with safety and it is convenient for efficient access control.
